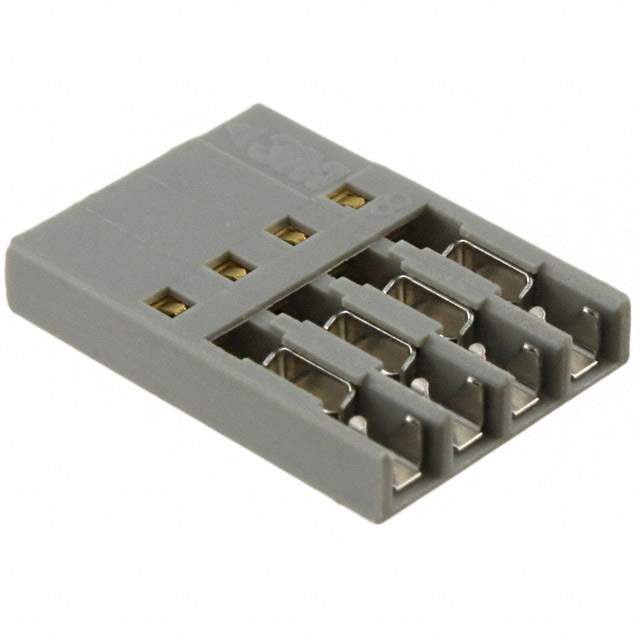

Same model may have multiple batches, images only for reference.

CHG-1004-001010-KCP

Name: CHG-1004-001010-KCP
Brand: 3M
SKU: 1167975
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CHG-1004-001010-KCP
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN RCPT 4POS IDC 26-28AWG GOLD / 4 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr	3M
Series	CHG
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	4
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Cable Termination	IDC
Wire Type	Discrete or Ribbon Cable
Wire Gauge	26-28 AWG
Features	Closed End
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Color	Gray
Base Product Number	CHG
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	7010396408,CHG1004001010KCP,XP700009358,7100262314,CHG-1004-001010-KCP-ND,00054007625490,80610409684,05400762549,3M9068,54007625490,5400762549
Standard Package	100
Win Source Part Number	1167975-CHG-1004-001010-KCP
Ultra Librarian 3D Model	Ultra Librarian CHG-1004-001010-KCP CAD Model

Alternative Products

Description

The 3M CHG series receptacle connector is a female socket designed for use in rectangular connectors.

Series: CHG
Connector Type: Receptacle
Positions: 4
Pitch: 0.100 inches (2.54mm)
End Feature: Closed End
Contact Material: Gold Plated
Contact Finish Thickness: 30.0µin (0.76µm)
Wire Gauge: 26-28 AWG
Cable Termination: IDC
Wire Type: Discrete or Ribbon Cable
Standard Package: 100
Color: Gray
Mounting: Free Hanging (In-Line)
