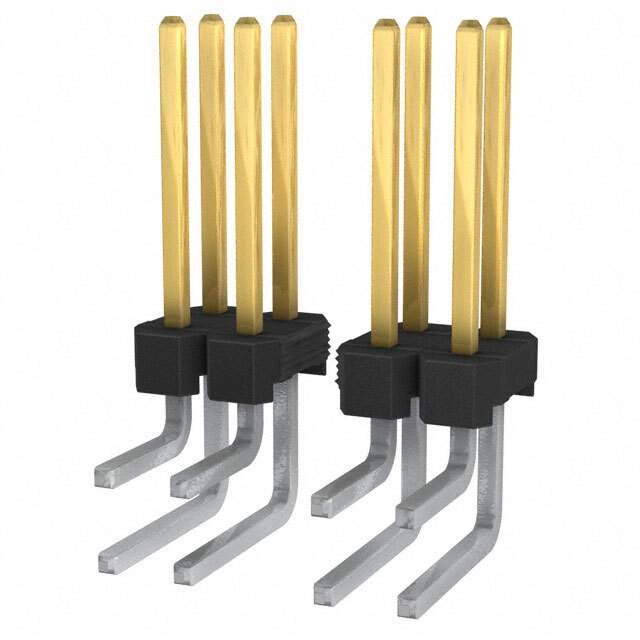

951260-7722-AR Real Image
Same model may have multiple batches, images only for reference.

951260-7722-AR

Part No 951260-7722-AR
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER 60POS 2MM R/A SOLDER
Datasheet
951260-7722-AR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series 951
Packaging Bulk
Part Status Obsolete(EOL)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board
Shrouding Unshrouded
Number of Positions 60
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.305" (7.75mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.157" (4.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1A
Contact Finish Thickness - Post 39μin (1.00μm)
Win Source Part Number 762024-951260-7722-AR
Popularity Medium
Supply and Demand Status Limited
Family Name 951
Introduction Date February 19, 2008
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 951260-7722-AR CAD Model

Description

The 3M 762024-951260-7722-AR is a header type connector manufactured by 3M.

  • Positions: 60 (2-row)
  • Mounting Type: Through Hole, Right Angle
  • Pitch: 0.079 inches (2.00mm)
  • Current Rating: 1A
  • Operating Temperature Range: -40°C to 105°C
  • Contact Material: Copper Alloy
  • Contact Finish: Gold (mating), Tin (post) (39µin (1.00µm) thickness)
  • Shrouding: Unshrouded
