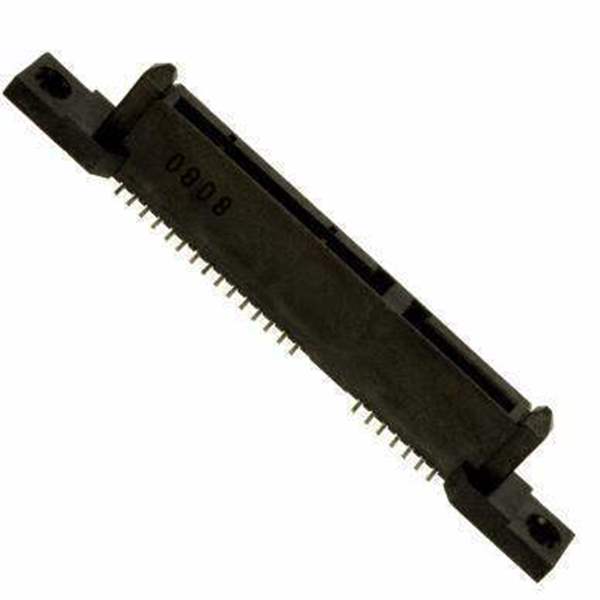

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer 3M
Category Connectors, Interconnects Pluggable Connectors Pluggable Connector Assemblies
Package Tray
Product Status Obsolete
Connector Style Receptacle
Connector Type SATA
Number of Positions 22
Mounting Type Surface Mount
Termination Solder
Features Flange
Win Source Part Number WS1209444-5622-2222-ML
Ultra Librarian 3D Model Ultra Librarian 5622-2222-ML CAD Model

Description

22 Position SATA Receptacle Connector Solder Surface Mount
