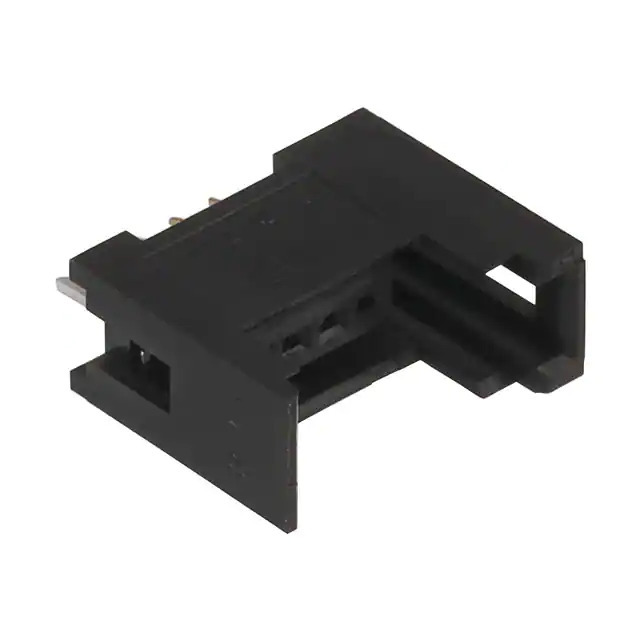

37204-62A3-004PL 3M
Same model may have multiple batches, images only for reference.

37204-62A3-004PL

Part No 37204-62A3-004PL
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN RCPT 4POS 0.079 GOLD PCB / 4 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr 3M
Series Mini-Clamp I, 372
Package Tray
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 1
Row Spacing - Mating -
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insulation Color Black
Insulation Height 0.512" (13.00mm)
Contact Length - Post 0.102" (2.60mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Mated Stacking Heights -
Ingress Protection -
Features Board Guide
Current Rating (Amps) 3A
Voltage Rating 32V
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post Flash
Base Product Number 37204
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1357260-37204-62A3-004PL
Ultra Librarian 3D Model Ultra Librarian 37204-62A3-004PL CAD Model

Description

The 37204-62A3-004PL is a rectangular connector from 3M's Mini-Clamp I, 372 series.

  • Series: Mini-Clamp I, 372
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Mounting Type: Through Hole
  • Features: Board Guide
  • Pitch: 0.079" (2.00mm)
  • Applications: Automotive, General Purpose, Industrial, Lighting, Medical
  • Current Rating: 3A
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 32V
