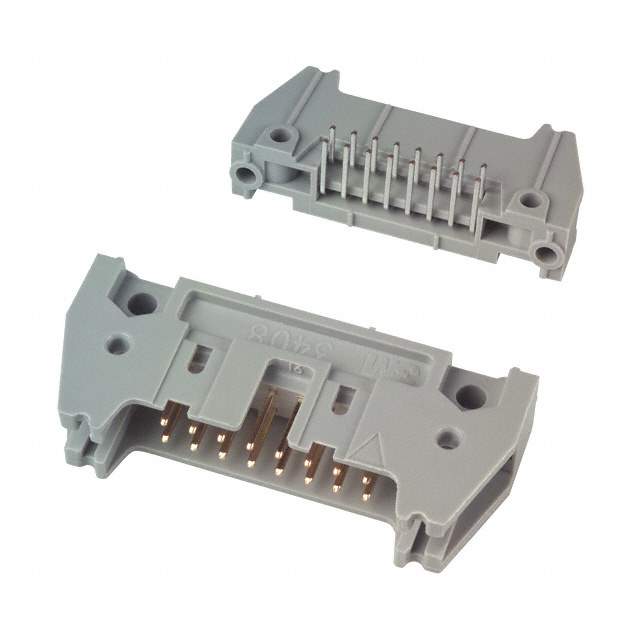

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 3000
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Insulation Height 0.340" (8.64mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number 3408
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 34085002,80001414285,80610097125,54007327240,80-6100-9712-5,00076308634704,MHR16G,07630863470,7010349322,5400732724,MHR16K
Standard Package 350
Win Source Part Number 1026061-3408-5002
Ultra Librarian 3D Model Ultra Librarian 3408-5002 CAD Model

Description

The 1026061-3408-5002 is a 16 position header connector manufactured by 3M.

  • Manufacturer: 3M
  • Product Name: 1026061-3408-5002
  • Positions: 16
  • Type: Header connector
  • Pin Type: Male
  • Mounting Feature: Mounting flange
  • Keying: Keying slot
  • Pitch: 0.100 inches (2.54mm)
  • Connection Style: Board to board or cable
  • Fastening Type: Push-pull
  • Shrouding: Shrouded-4 wall
  • Temperature Range: -55°C to 105°C
  • Current Rating: 1.75A
  • Contact Finish (Mating): Gold (30.0μin or 0.76μm)
  • Contact Finish (Post): Tin-Lead (200.0μin or 5.08μm)
  • Insulation Material: Polycyclohexylenedimethylene terephthalate (PCT), polyester, glass filled
  • Flammability Rating: UL94 V-0
  • ECCN: EAR99 compliant
