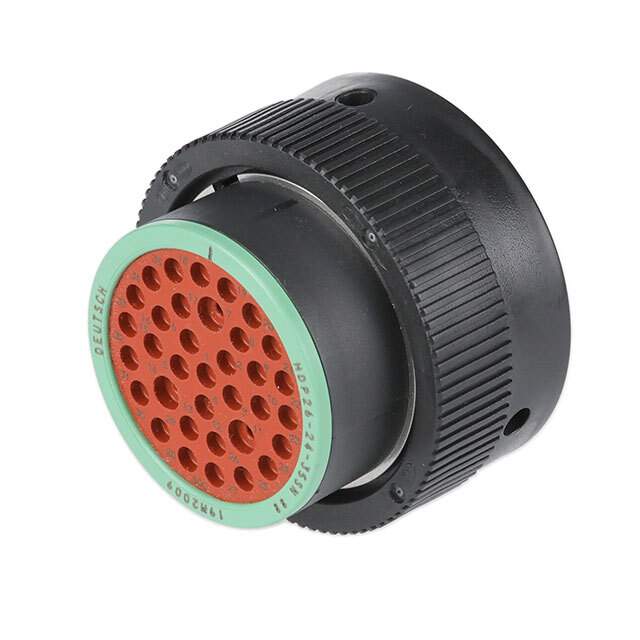

HDP26-24-35SN Real Image
Same model may have multiple batches, images only for reference.

HDP26-24-35SN

Part No HDP26-24-35SN
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 35
Shell Size - Insert 24-35
Contact Type Crimp
Contact Size 16 (3), 20 (32)
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP26
Other Names 1734-1233,-HDP26-24-35SN-SI
Standard Package 40
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1294239-HDP26-24-35SN
Ultra Librarian 3D Model Ultra Librarian HDP26-24-35SN CAD Model

Description

The HDP20 35-position plug housing is designed for female sockets and features a bayonet lock for secure and reliable connections.

  • Material: Polyamide (PA66), nylon 6/6, glass filled material with a UL94 V-1 flammability rating
  • Color: Black
  • Ingress Protection: IP68-rated, making it dust-tight and waterproof
  • Contact Type: Crimp
  • Contact Size: 16 (3), 20 (32), with contacts not included
  • Mounting: Suitable for free hanging (in-line) mounting
  • Temperature Range: -55°C to 125°C
  • RoHS Compliance: RoHS compliant
  • ECCN: EAR99
