Same model may have multiple batches, images only for reference.

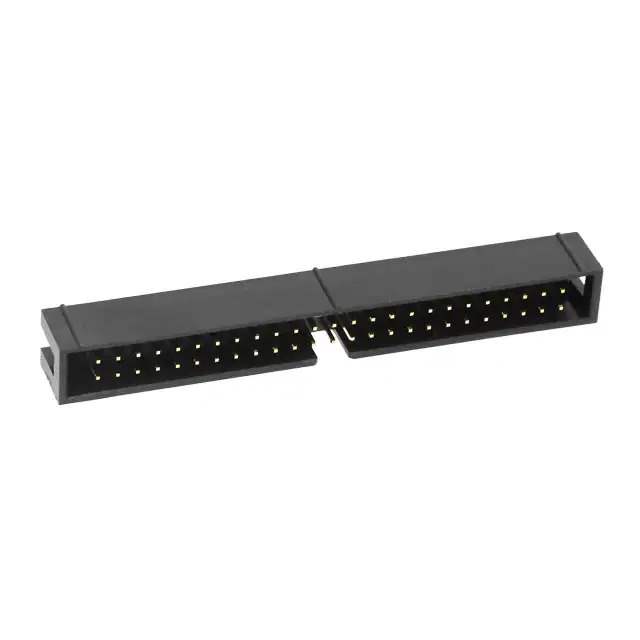

30350-6002HB Real Image
Same model may have multiple batches, images only for reference.

30350-6002HB

Part No 30350-6002HB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER VERT 50POS 2.54MM / Connector Header Through Hole 50 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 303
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.366" (9.30mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Contact Finish Thickness - Post Flash
Base Product Number 30350
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 844904-30350-6002HB
Ultra Librarian 3D Model Ultra Librarian 30350-6002HB CAD Model

Description

The 3M 844904-30350-6002HB is a male pin header connector from the 303 series.

  • Positions: 50
  • Keying: Keying Slot
  • Connection Type: Board-to-Board or Cable
  • Rows: Two
  • Termination: Solder
  • Fastening: Push-Pull
  • Contact Material: Brass
  • Flammability Rating: UL94 V-0
  • Mounting: Through-Hole
  • Shrouding: Shrouded with 4 Walls
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold with Flash
  • Post Contact Finish: Gold with Flash
  • Color: Black
  • Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Insulation Height: 0.366" (9.30mm)
  • Operating Temperature: -55°C to 105°C
  • Current Rating: 1A
  • REACH: Unaffected
  • Status: Active
