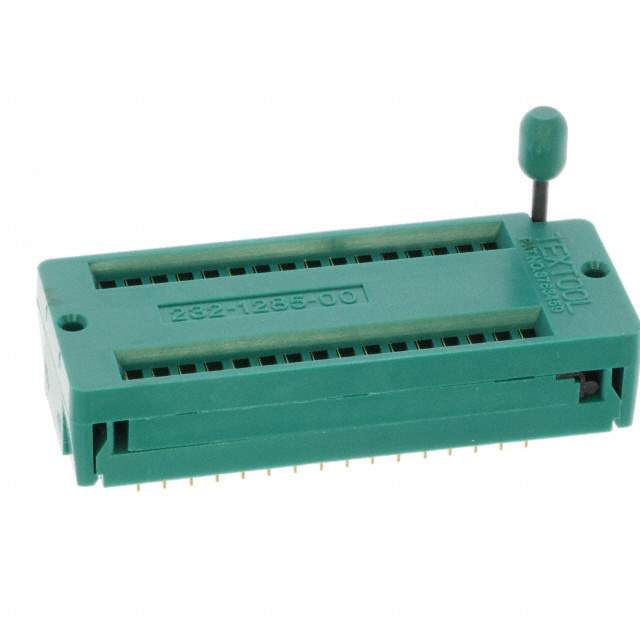

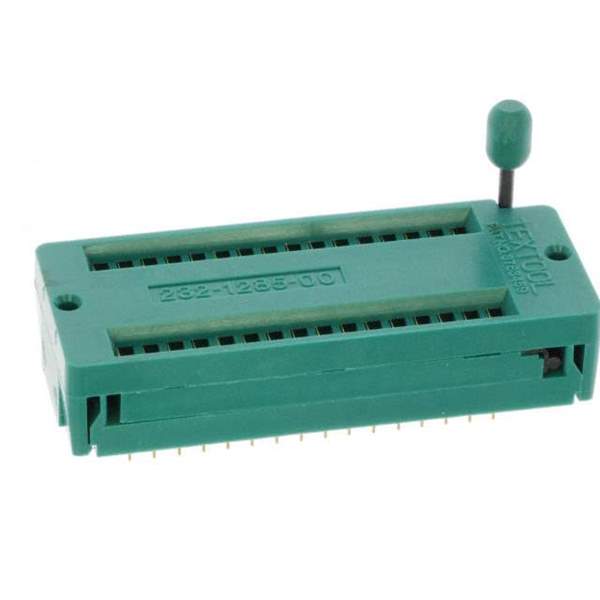

The 1066299-232-1285-00-0602J connector from 3M is a part of the Textool™ series. It is a DIP, ZIF (ZIP) type connector with a row spacing of 0.6" (15.24mm). The connector has a closed frame feature and termination is done through press-fit. The housing material is made of Polysulfone (PSU), Glass Filled and has a material flammability rating of UL94 V-0. The connector has 32 positions or pins with a pitch-mating of 0.100" (2.54mm). The contact finish-mating is gold with a thickness of 30.0µin (0.76µm) and the contact material-mating is Beryllium Copper. The pitch-post is 0.100" (2.54mm) and the contact finish-post is also gold with a thickness of 30.0µin (0.76µm) and the contact material-post is Beryllium Copper. The connector has a termination post length of 0.110" (2.78mm) and is mounted through connector type. The connector can operate in a temperature range of -55°C to 125°C.
