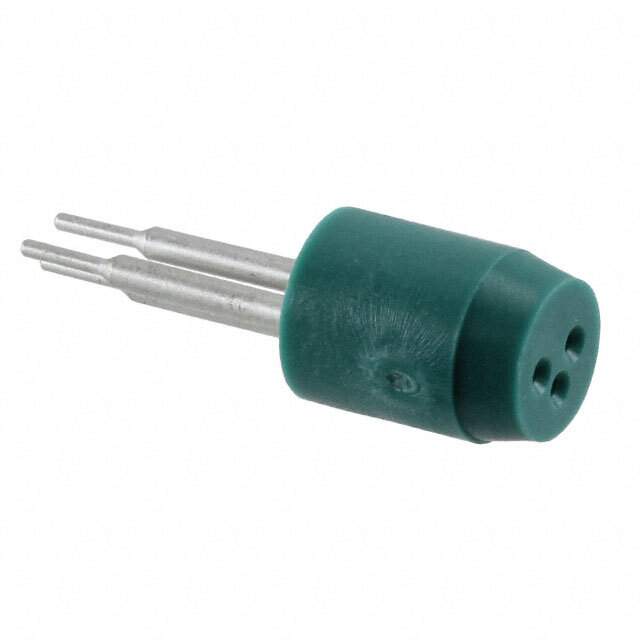

203-6970-50-0602J Real Image
Same model may have multiple batches, images only for reference.

203-6970-50-0602J

Part No 203-6970-50-0602J
Manufacturer 3M
Catalog Sockets for ICs, Transistors
Description Laser Diode Socket, .079 in (2 mm) Pin, No Mounting Flange, TextTool Series
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Copper
Contact Plating Gold
Current Rating 1 A
Diameter 2 mm
Flammability Rating UL94 V-0
Gender Female
Housing Material Polysulfone
Lead Free Contains Lead
Maximum Operating Temperature 150 °C
Min Operating Temperature -55 °C
Number of Contacts 3
Number of Positions 3
Pitch 2 mm
RoHS Compliant
Termination Through Hole
Voltage Rating 1 kV
Weight 453.59237 g
Win Source Part Number 1041772-203-6970-50-0602J
Categories Sockets for ICs,Transistors
Manufacturer 3M
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 203-6970-50-0602J CAD Model

Description

The 3M 1041772-203-6970-50-0602J is a socket for ICs and transistors.

  • Positions: 3
  • Pitch: 2mm
  • Voltage Rating: 1kV
  • Current Rating: 1A
  • Contact Material: Copper
  • Contact Plating: Gold
  • Housing Material: Polysulfone
  • Termination: Through-Hole
  • Supply: Short
  • Maximum Operating Temperature: 150°C
  • Minimum Operating Temperature: -55°C
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
