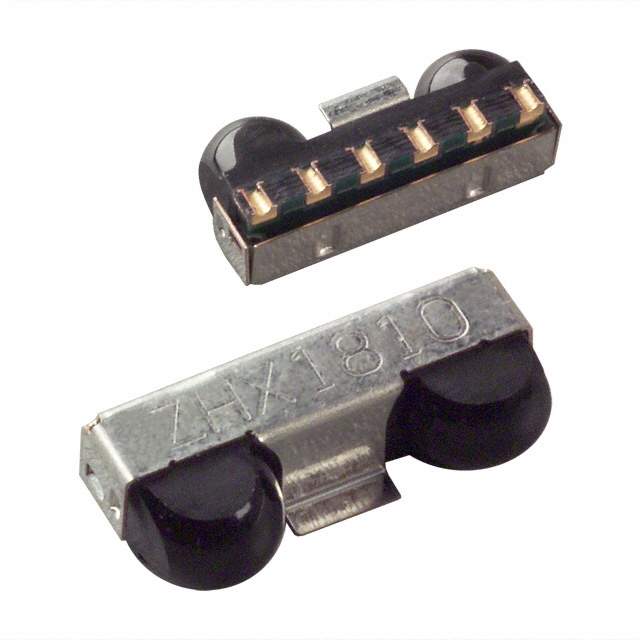

ZHX1810MV115THTR Real Image
Same model may have multiple batches, images only for reference.

ZHX1810MV115THTR

Part No ZHX1810MV115THTR
Manufacturer Zilog
Catalog IrDA Transceiver Modules
Description Slim Series SIR Transceiver
Datasheet
ZHX1810MV115THTR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Zilog
Packaging Reel - TR
Part Status Obsolete(EOL)
Data Rate 115.2kbs (SIR)
Supply Voltage 2.4 V ~ 5.5 V
Idle Current, Typ @ 25°C 90μA
Link Range, Low Power 1m
Orientation Side View
Operating Temperature Range -30°C ~ 85°C
Size 9.1mm x 3.8mm x 2.7mm
Standards IrPHY 1.4
Shutdown Yes
Win Source Part Number 1282870-ZHX1810MV115THTR
Manufacturer Homepage www.zilog.com
Popularity Medium
Supply and Demand Status Limited
Family Name ZHX1810
Introduction Date November 17, 2005
ECCN EAR99
Estimated EOL Date 2022
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ZHX1810MV115THTR CAD Model

Description

The ZHX1810MV115THTR is an electronic component manufactured by Zilog. It has a data rate of 115.2kbs (SIR) and a supply voltage of 2.4V to 5.5V.

  • It is an: obsolete (EOL) product with limited supply and demand status.
  • The product has an idle current, typ @ 25°C of: 90μA
  • and a link range, low power of: 1m.
  • The product has an introduction date of: November 17, 2005
  • and an estimated EOL date of: 2022.
