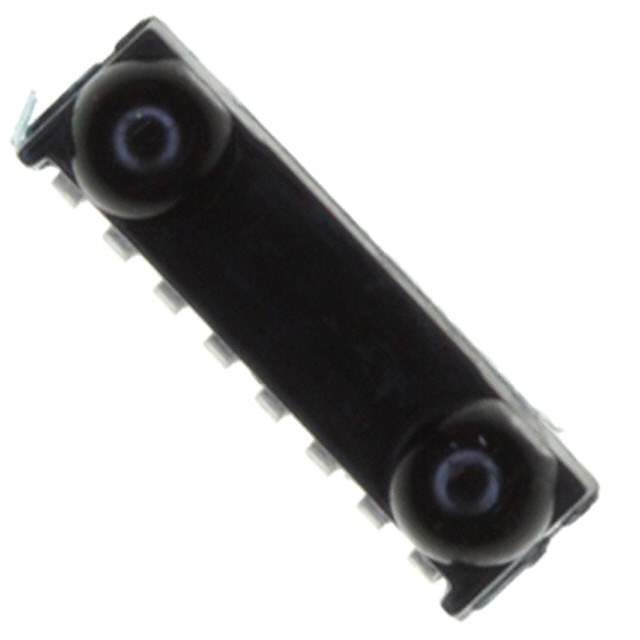

TFDU4300-TT3 Real Image
Same model may have multiple batches, images only for reference.

TFDU4300-TT3

Part No TFDU4300-TT3
Manufacturer Vishay
Catalog IrDA Transceiver Modules
Description TXRX IRDA 115.2KBIT 2.5MM 8-SMD / Infrared Transceiver Module (SIR, 115.2 kbit/s)
Datasheet
TFDU4300-TT3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Opto Division
Packaging Reel
Part Status Obsolete (End Of Life)
Data Rate 115.2kbs (SIR)
Supply Voltage (V) 2.4V ~ 5.5V
Idle Current, Typ at 25°C 75μA
Link Range, Low Power 70cm
Orientation Top View
Temperature Range - Operating -30°C ~ 85°C
Size 8.5mm x 2.9mm x 2.5mm
Standards IrPHY 1.0
Shutdown Yes
Manufacturer Pack Quantity 2,500
MSL Level 4 (72 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806820-TFDU4300-TT3
Ultra Librarian 3D Model Ultra Librarian TFDU4300-TT3 CAD Model

Description

The Vishay Semiconductor Opto Division TFDU4300-TT3 is a top view infrared transceiver module that is designed for data communication.

  • Data Rate: 115.2kbs (SIR)
  • Link Range: 70cm
  • Supply Voltage: 2.4V to 5.5V
  • Idle Current: 75μA @ 25°C (Typical)
  • Standard: IrPHY 1.0
  • Shutdown Feature: Yes
  • Dimensions: 8.5mm x 2.9mm x 2.5mm
  • Packaging: Reel
  • MSL Level: 4 (72 Hours)
  • Manufacturer Pack Quantity: 2,500
  • Obsolete (End of Life): Yes
