Same model may have multiple batches, images only for reference.

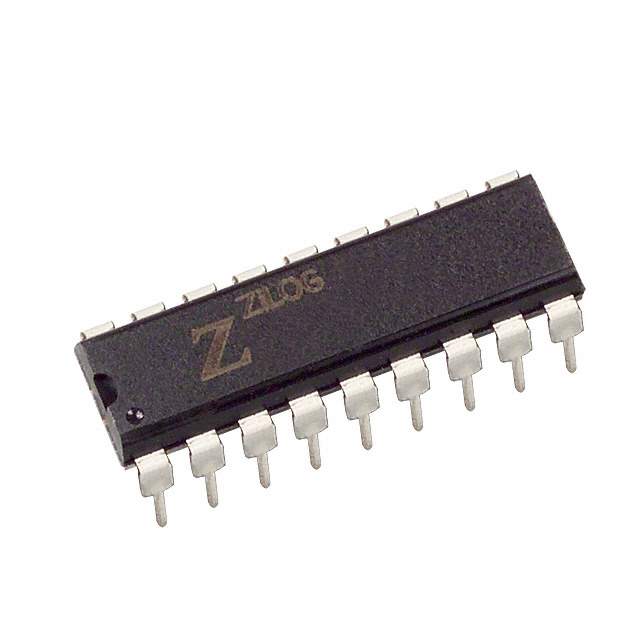

Z8PE002PZ010SC Real Image
Same model may have multiple batches, images only for reference.

Z8PE002PZ010SC

Part No Z8PE002PZ010SC
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description FEATURE-ENHANCED Z8PLUS 0.5K ROM ONE-TIME PROGRAMMABLE(OTP) MICROCONTROLLER
Datasheet
Z8PE002PZ010SC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Zilog
Series Z8 Plus
Packaging Tube
Part Status Obsolete(EOL)
Core Processor Z8
Core Size 8-Bit
Speed 10MHz
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 14
Program Memory Size 512B (512 x 8)
Program Memory Type One Time Programmable(OTP)
RAM Size 64 x 8
Supply Voltage 3 V ~ 5.5 V
Oscillator Type Internal
Operating Temperature Range 0°C ~ 70°C (TA)
Package 18-DIP (0.300", 7.62mm)
RoHS State Request Verification
Win Source Part Number 1282838-Z8PE002PZ010SC
Manufacturer Homepage www.zilog.com
Popularity Medium
Supply and Demand Status Limited
Family Name Z8PE002
Introduction Date August 06, 1999
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian Z8PE002PZ010SC CAD Model

Description

The Z8PE002PZ010SC is an integrated circuit by Zilog that is a part of the Z8 Plus series.

  • Speed: 10MHz
  • Peripherals: Brown-out detect/reset, POR, PWM, and WDT
  • I/O: 14 I/O
  • Program Memory Size: 512B (512 x 8)
  • Voltage Supply: 3V to 5.5V
  • Temperature Range: 0°C to 70°C
  • Supply and Demand Status: Limited
  • Package: 18-DIP (0.300", 7.62mm)
  • Category: Integrated Circuit
