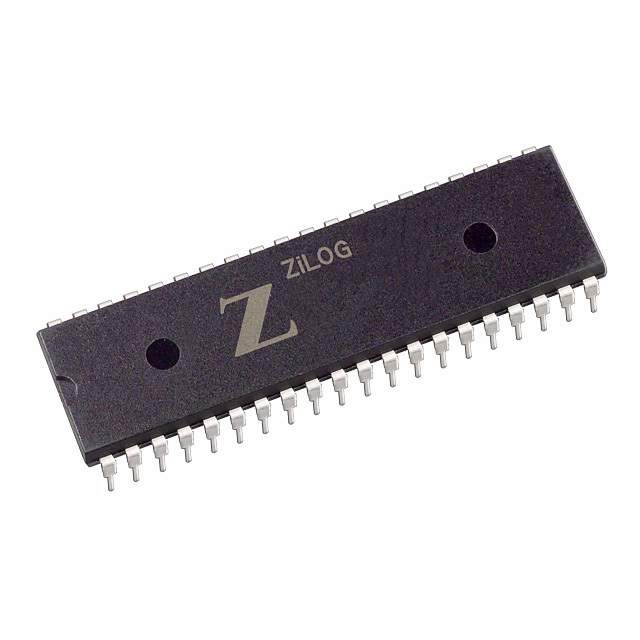

Z8F1601PM020SC Real Image
Same model may have multiple batches, images only for reference.

Z8F1601PM020SC

Part No Z8F1601PM020SC
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 40DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features eZ8 series Microcontroller IC 8-Bit 20MHz 16KB (16K x 8) FLASH
Manufacturer Zilog
Series Encore!®
Package Tube
Part Status Obsolete
Core Processor eZ8
Core Size 8-Bit
Speed 20MHz
Connectivity I2C, IrDA, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O 31
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Supply Voltage 3V ~ 3.6V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting Through Hole
Package 40-DIP (0.620", 15.75mm)
Family Name Z8F1601
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 10
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904230-Z8F1601PM020SC
Ultra Librarian 3D Model Ultra Librarian Z8F1601PM020SC CAD Model

Description

The Zilog Z8F1601PM020SC is an eZ8 series microcontroller IC that operates @ a speed of 20MHz. It comes with a program memory size of 16KB (16K x 8) FLASH and a data converter of A/D 8x10b.

  • Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, and WDT
  • Supply Voltage: 3V to 3.6V
  • Package: 40-DIP (0.620", 15.75mm) Tube
  • Mounting: Through Hole
  • Connectivity: I2C, IrDA, SPI, and UART/USART
  • Family: Z8F1601
  • Category: Integrated Circuits (ICs)
  • Status: Obsolete
