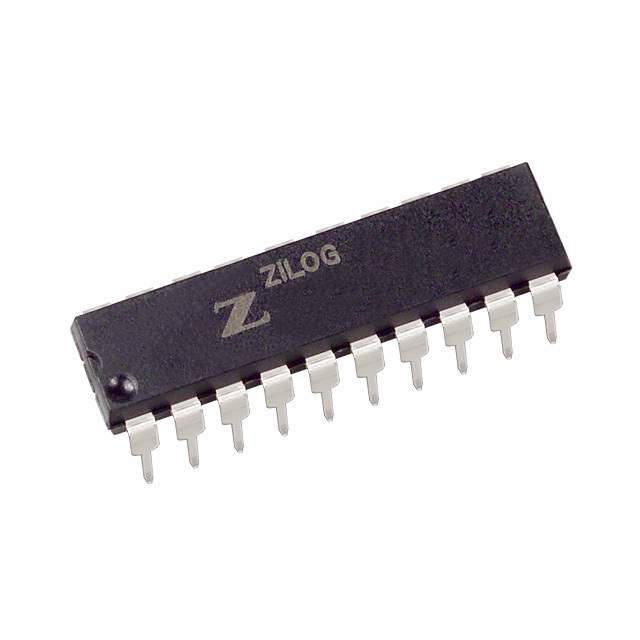

Z8F0423PH005SG2156 Real Image
Same model may have multiple batches, images only for reference.

Z8F0423PH005SG2156

Part No Z8F0423PH005SG2156
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 4KB FLASH 20DIP / MCU 8-bit eZ8 CISC 4KB Flash 3.3V 20-Pin PDIP
Datasheet
Z8F0423PH005SG2156 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Zilog
Series Encore! XP
Packaging Tube
Core Processor eZ8
Core Size 8-Bit
Speed 5MHz
Connectivity IrDA, UART/USART
Peripherals Brown-out Detect/Reset, LED, POR, PWM, WDT
Number of I/O 16
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
RAM Size 1K x 8
Supply Voltage 2.7 V ~ 3.6 V
Data Converters A/D 7x10b
Oscillator Type Internal
Operating Temperature Range 0°C ~ 70°C (TA)
Package 20-DIP (0.300", 7.62mm)
Manufacturer Package 20-PDIP
Win Source Part Number 800292-Z8F0423PH005SG2156
Popularity Medium
Supply and Demand Status Limited
Quantity per package 18
Family Name Z8F0423PH
Introduction Date January 01, 2000
Country of Origin Taiwan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian Z8F0423PH005SG2156 CAD Model

Description

The Zilog Encore! XP Z8F0423PH005SG2156 is an 8-bit microcontroller that operates @ a speed of 5MHz and comes with 4KB of flash program memory.

  • Connectivity: IrDA and UART/USART
  • Peripherals: brown-out detect/reset, LED, POR, PWM, and WDT
  • Supply Voltage: 2.7V to 3.6V
  • Package: 20-DIP
