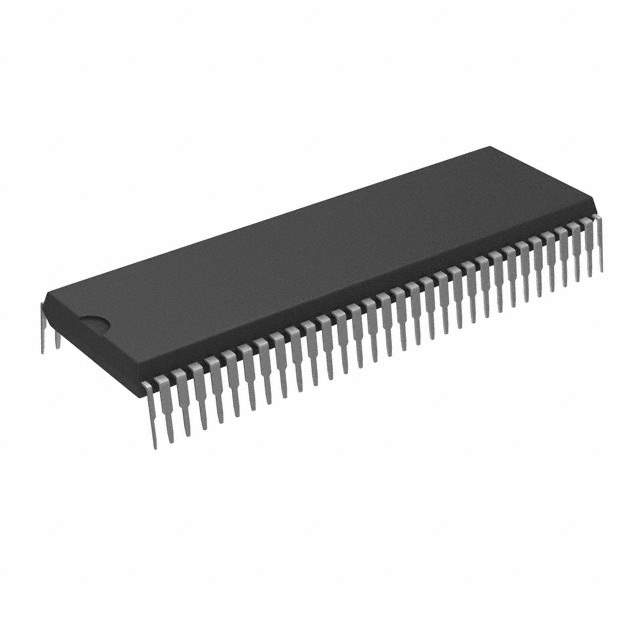

Z8018006PSC Real Image
Same model may have multiple batches, images only for reference.

Z8018006PSC

Part No Z8018006PSC
Manufacturer Zilog
Catalog Embedded - Microprocessors
Description IC MPU Z180 6MHZ 64DIP
Datasheet
Z8018006PSC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Zilog
Packaging Tube/Rail
Status Obsolete(EOL)
Core Processor Z80180
Number of Cores/Bus Width 1 Core, 8-Bit
Speed(Frequency) 6MHz
RAM Controllers DRAM
Graphics Acceleration No
Voltage - I/O 5.0V
Temperature Range - Operating 0°C to 70°C (TA)
Security Package / Case 64-DIP (0.750", 19.05mm)
Case / Package 64-DIP
Additional Interfaces ASCI, CSIO, UART
Win Source Part Number 057908-Z8018006PSC
Popularity Medium
Supply and Demand Status Limited
Quantity per package 8
Ultra Librarian 3D Model Ultra Librarian Z8018006PSC CAD Model

Description

The Zilog Z8018006PSC is an 8-bit core processor with a speed of 6MHz.

  • RAM Controller: DRAM
  • Additional Interfaces: ASCI, CSIO, and UART
  • Package: 64-DIP tube/rail
  • Voltage I/O: 5.0V
  • Supply and Demand Status: Limited
  • Status: Obsolete (EOL)
  • Temperature Range: 0°C to 70°C (TA)
  • Units per Package: 8
