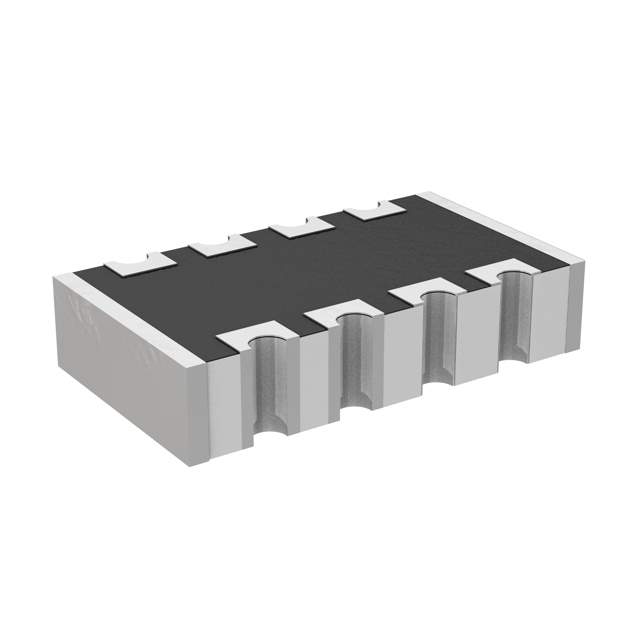

TC164-JR-074K7L Real Image
Same model may have multiple batches, images only for reference.

TC164-JR-074K7L

Part No TC164-JR-074K7L
Manufacturer Yageo
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 4.7K OHM 1206 / 4.7k Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Concave, Long Side Terminals
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr YAGEO
Series TC164
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 4.7k
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications DDRAM, SDRAM
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Concave, Long Side Terminals
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Names TC164J-4.7KCT,TC164J-4.7KTR,TC164JR074K7L,TC164J-4.7KDKR
Standard Package 5,000
Win Source Part Number 1121532-TC164-JR-074K7L
Ultra Librarian 3D Model Ultra Librarian TC164-JR-074K7L CAD Model

Description

The TC164JR-074K7L resistor network from Yageo is a 4.7k ohm, isolated circuit type resistor with 4 resistors and 8 pins.

  • Manufacturer: Yageo
  • Resistance: 4.7k ohm
  • Circuit Type: Isolated
  • Number of Resistors: 4
  • Number of Pins: 8
  • Power per Element: 62.5mW
  • Tolerance: ±5%
  • Package: 1206 (3216 Metric), concave, long side terminals
  • Temperature Coefficient: ±200ppm/°C
  • Common Applications: DDRAM and SDRAM
