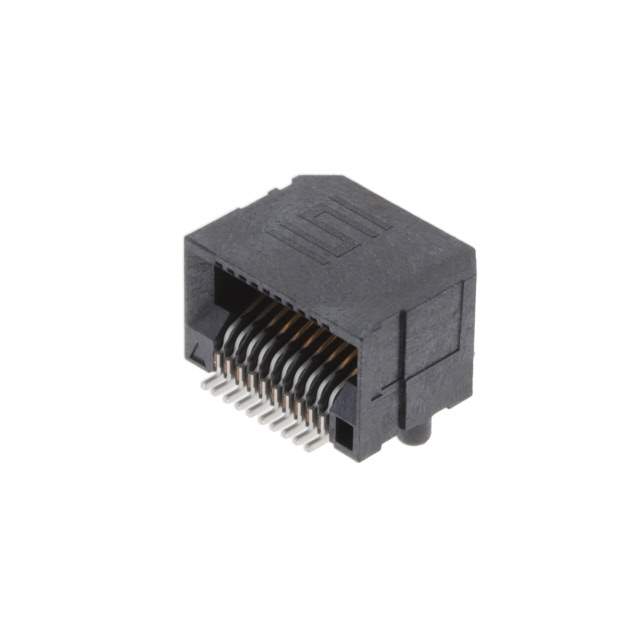

MEC6-110-02-L-D-RA1-TR Real Image
Same model may have multiple batches, images only for reference.

MEC6-110-02-L-D-RA1-TR

Part No MEC6-110-02-L-D-RA1-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 20POS 0.025 / 20 Position Female Connector Non Specified - Dual Edge Gold 0.025" (0.64mm) Black
Datasheet
MEC6-110-02-L-D-RA1-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Samtec Inc.
Packaging Reel - TR
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 10
Number of Positions 20
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.025" (0.64mm)
Read Out Dual
Features Board Guide
Mounting Surface Mount, Right Angle
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number MEC6-110
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MEC6-110-02-L-D-RA1-TR-ND,SAM14191TR,SAM14191DKR,MEC6-110-02-L-D-RA1-FR,SAM14191CT
Standard Package 300
Win Source Part Number 1334054-MEC6-110-02-L-D-RA1-TR
Ultra Librarian 3D Model Ultra Librarian MEC6-110-02-L-D-RA1-TR CAD Model

Description

The MEC6-110-02-L-D-RA1-TR is a card edge connector from Samtec Inc. with 20 positions and a pitch of 0.025 inches.

  • Positions: 20
  • Pitch: 0.025 inches
  • Packaging: Reel
  • Color: Black
  • Features: Board Guide
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0 µin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Gender: Female
  • Rows: Two
  • Mounting: Right-Angle Surface Mount
  • Card Thickness: 0.062 inches
  • Card Type: Non-Specified Dual Edge
  • Temperature Range: -55°C to 125°C
  • ROHS3 Compliant: Yes
