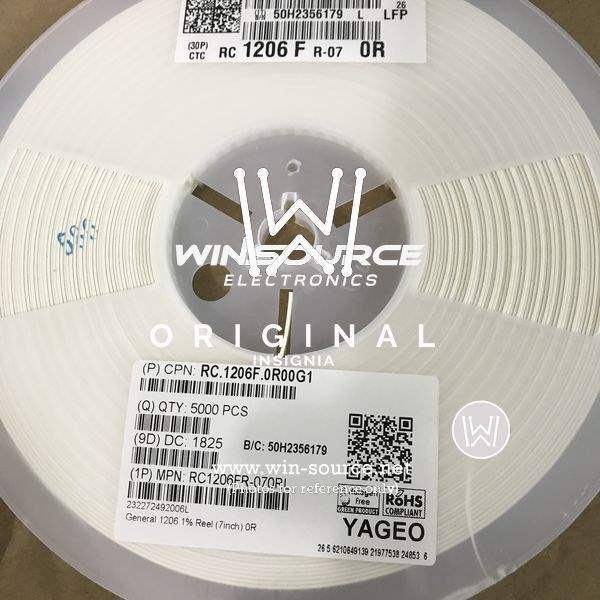

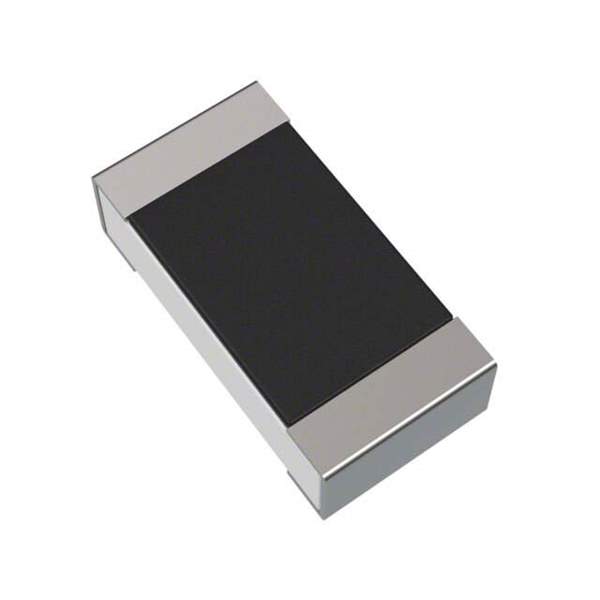

The RC1206FR-070RL is a surface mount resistor from Yageo's RC series. It is a thick film chip resistor designed for general purpose applications in electronic circuits. The '0RL' designation indicates a zero-ohm jumper resistor, allowing it to function as a link or bridge on a printed circuit board.

Applications

• PCB Jumper: Used as a zero-ohm jumper on printed circuit boards to connect traces or bypass components.
• Current Sensing: Can be used as a very low value sense resistor for low current applications.
• Test Points: Used as a convenient test point for circuit debugging and analysis.
• Configuration Links: Acts as a configuration link where different circuit paths can be enabled or disabled by removing or replacing the resistor.
• Grounding Points: Used as a point to connect different ground planes on a PCB.

Features

• Zero-Ohm Resistance: Provides virtually zero resistance, allowing it to act as a direct connection.
• Surface Mount Package: Available in a standard 1206 surface mount package, suitable for automated assembly.
• High Reliability: Offers high reliability and stability in various operating conditions.
• Compact Size: The 1206 package provides a good balance between size and power handling.
• RoHS Compliant: Compliant with RoHS standards, ensuring environmental friendliness.

Benefits

• Easy PCB Rework: Allows for easy circuit modifications and rework by simply removing or replacing the resistor.
• Cost-Effective Connection: Provides a cost-effective alternative to dedicated jumpers or wire links.
• Automated Assembly: Suitable for automated assembly processes, reducing manufacturing costs.
• Improved Circuit Layout: Enables improved circuit layout by providing a convenient connection point.
• Reduced Component Count: Reduces the overall component count by functioning as a direct link.

Specifications

The RC1206FR-070RL has a resistance value of 0 ohms. It is available in a 1206 package. The operating temperature range is typically -55°C to +155°C. The maximum current rating depends on PCB design, but is typically around 2 amps. The power rating is approximately 0.25W.
