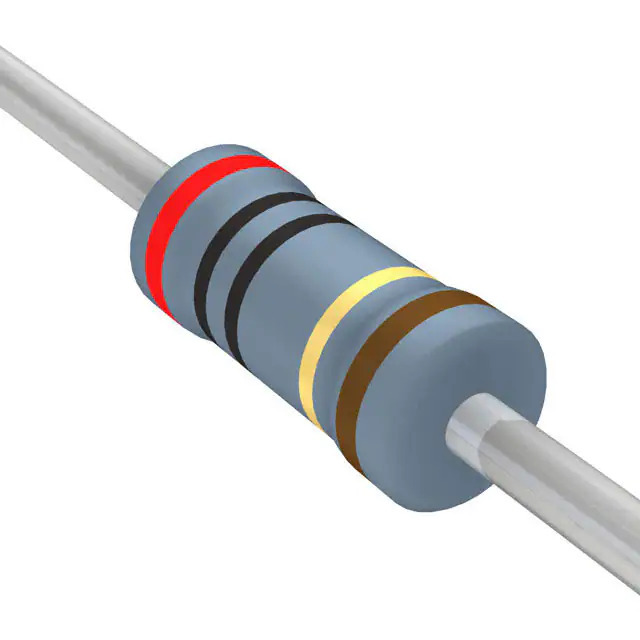

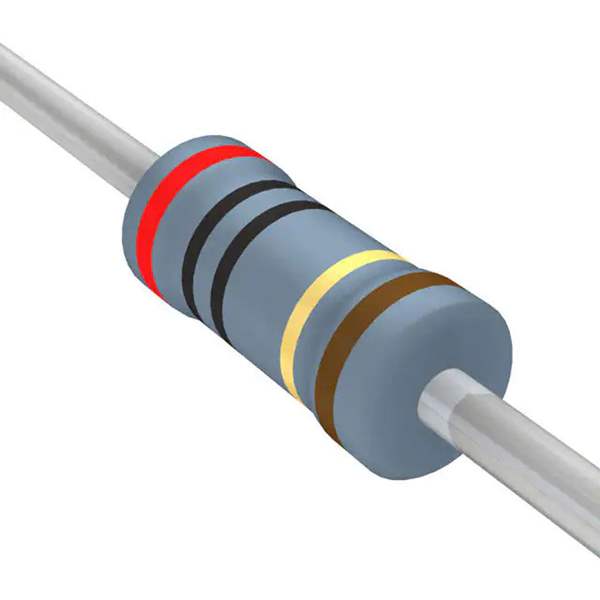

Same model may have multiple batches, images only for reference.

MFR-25FBF52-20R

Name: MFR-25FBF52-20R
Brand: Yageo
SKU: 1374347
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MFR-25FBF52-20R
Manufacturer	Yageo
Catalog	Through Hole Resistors
Description	RES 20 OHM 1% 1/4W AXIAL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	YAGEO
Series	MFR
Package	Bulk
Product Status	Active
Resistance	20 Ohms
Tolerance	±1%
Power (Watts)	0.25W, 1/4W
Composition	Metal Film
Features	-
Temperature Coefficient	±100ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.094" Dia x 0.248" L (2.40mm x 6.30mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1374347-MFR-25FBF52-20R
Ultra Librarian 3D Model	Ultra Librarian MFR-25FBF52-20R CAD Model

Alternative Products

Description

The YAGEO 1374347-MFR-25FBF52-20R resistor is a metal film resistor with a resistance of 20 Ohms.

Resistance: 20 Ohms
Power Rating: 0.25W or 1/4W
Tolerance: ±1%
Series: MFR
Mounting Type: Through-Hole
Package: Axial
Terminations: 2
Temperature Range: -55°C to 155°C
Temperature Coefficient: ±100ppm/°C
REACH: Unaffected
Status: Active
Packaging: Bulk
Composition: Metal Film
