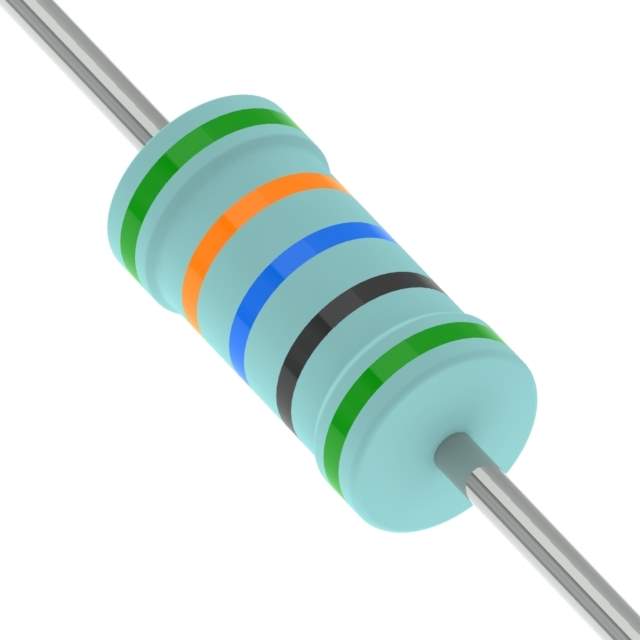

MFR-12DRD52-536R Real Image
Same model may have multiple batches, images only for reference.

MFR-12DRD52-536R

Part No MFR-12DRD52-536R
Manufacturer Yageo
Catalog Through Hole Resistors
Description RES 536 OHM 0.5% 1/6W AXIAL / 536 Ohms ±0.5% 0.167W, 1/6W Through Hole Resistor Axial Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr YAGEO
Series MFR
Package Tape & Reel (TR)
Resistance 536 Ohms
Tolerance ±0.5%
Power (Watts) 0.167W, 1/6W
Composition Metal Film
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.075" Dia x 0.134" L (1.90mm x 3.40mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Standard Package 5,000
Win Source Part Number 1087919-MFR-12DRD52-536R
Ultra Librarian 3D Model Ultra Librarian MFR-12DRD52-536R CAD Model

Description

The MFR-12DRD52-536R is a through-hole resistor from YAGEO's MFR series.

  • Series: MFR
  • Resistance: 536 ohms
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.167W or 1/6W
  • Resistor Type: Metal Film
  • Package: Tape and Reel
  • Standard Package: 5,000
  • Temperature Range: -55°C to 155°C
