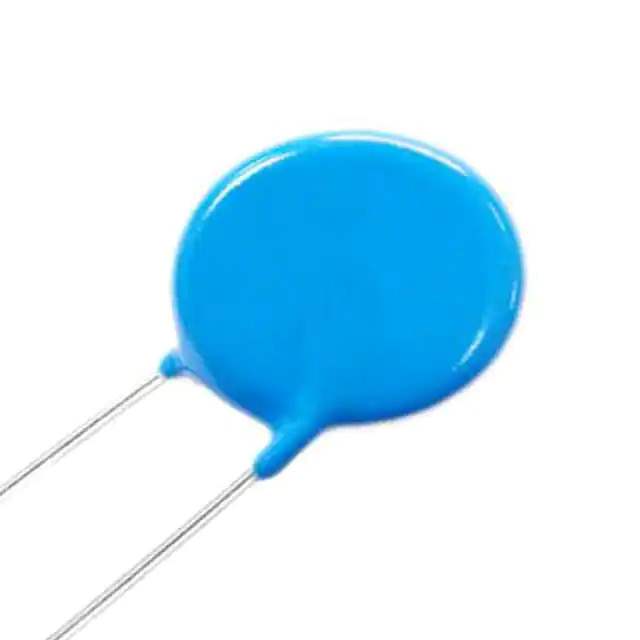

681KD20 Real Image
Same model may have multiple batches, images only for reference.

681KD20

Part No 681KD20
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV
Datasheet
681KD20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr YAGEO
Series 20D
Package Bag
Product Status Active
Maximum AC Volts 420 V
Maximum DC Volts 560 V
Varistor Voltage (Min) 612 V
Varistor Voltage (Typ) 680 V
Varistor Voltage (Max) 748 V
Current - Surge 10 kA
Energy 400J
Number of Circuits 1
Capacitance @ Frequency 600 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Through Hole
Package / Case Disc 20mm
Standard Package 150 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 856961-681KD20
Ultra Librarian 3D Model Ultra Librarian 681KD20 CAD Model

Description

The 856961-681KD20 is a varistor designed for circuit protection against transient voltage surges.

  • Series: 20D
  • Package: Bag
  • Capacitance: 600pF @ 1kHz
  • Varistor Voltage: 612V to 748V
  • Surge Current: 10kA
  • Maximum AC Voltage: 420V
  • Maximum DC Voltage: 560V
  • Energy Rating: 400J
  • Mounting: Through-hole
  • Package: Disc 20mm
  • Operating Temperature: -40°C to 105°C
  • Applications: Power supplies, industrial equipment, and communication systems
  • Supplier: YAGEO
  • Product Status: Active
