Same model may have multiple batches, images only for reference.

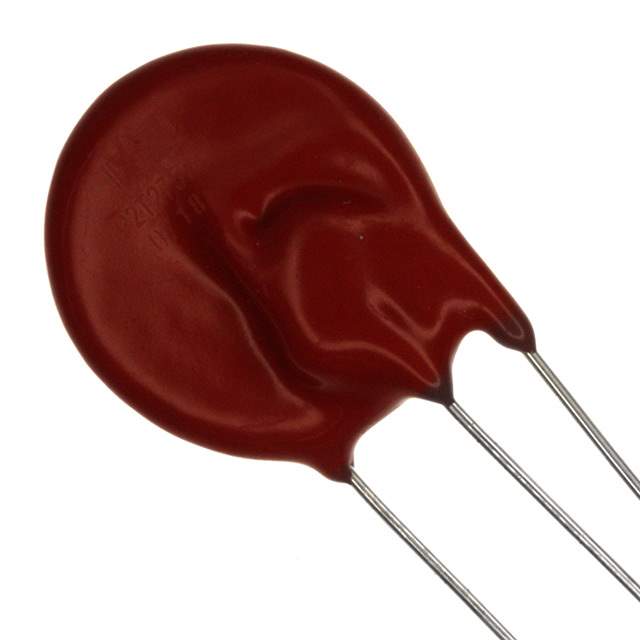

TMOV20RP420M Real Image
Same model may have multiple batches, images only for reference.

TMOV20RP420M

Part No TMOV20RP420M
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 680V 10KA DISC 20MM
Datasheet
TMOV20RP420M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Varistor Voltage (Min) 612V
Varistor Voltage (Typ) 680V
Varistor Voltage (Max) 748V
Current - Surge 10kA
Energy 320J
Number of Circuits 1
Maximum AC Volts 420VAC
Maximum DC Volts 560VDC
Capacitance @ Frequency 600pF @ 1MHz
Temperature Range - Operating -55°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 20mm 3-Lead
Win Source Part Number 1086123-TMOV20RP420M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TMOV20RP420M CAD Model

Description

The Littelfuse Inc. TMOV20RP420M is a circuit protection device that is designed to protect electronic circuits from voltage surges and transients.

  • Popularity Rating: Medium
  • Supply and Demand Status: Balanced
  • Mounting Type: Through-hole
  • Device Type: Varistor
  • Maximum AC Voltage: 420VAC
  • Maximum DC Voltage: 560VDC
  • Capacitance: 600pF @ 1MHz
  • Surge Current: Up to 10kA
  • Energy Rating: 320J
