Same model may have multiple batches, images only for reference.

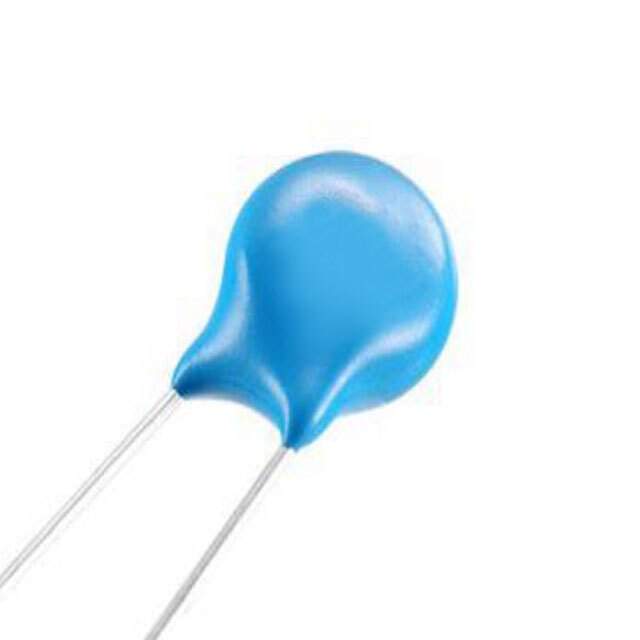

561KD07 Real Image
Same model may have multiple batches, images only for reference.

561KD07

Part No 561KD07
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 560 V 1.75 kA Varistor 1 Circuit Through Hole Disc 7mm
Datasheet
561KD07 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Manufacturer Yageo
Packaging Bulk
Maximum AC Volts 350 V
Maximum DC Volts 460 V
Varistor Voltage (Min) 504 V
Varistor Voltage (Typ) 560 V
Varistor Voltage (Max) 616 V
Current - Surge 1.75 kA
Energy 49J
Number of Circuits 1
Capacitance @ Frequency 90 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C
Mounting Through Hole
Case / Package Disc 7mm
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Part Number 13-561KD07
Standard Package 1,000
Win Source Part Number 1334786-561KD07
Ultra Librarian 3D Model Ultra Librarian 561KD07 CAD Model

Description

The Yageo 1334786-561KD07 is a TVS-varistor, MOV circuit protection component that is designed for use in electronic devices.

  • Capacitance: 90 pF @ 1 kHz
  • Varistor Voltage Range: 504V to 616V
  • Maximum AC Voltage: 350V
  • Maximum DC Voltage: 460V
  • Mounting Style: Through-Hole
  • Case/Package: Disc 7mm
  • Surge Current: 1.75 kA
  • Energy Rating: 49J
  • Temperature Range: -40°C to 105°C
  • Compliance: ROHS3
