Same model may have multiple batches, images only for reference.

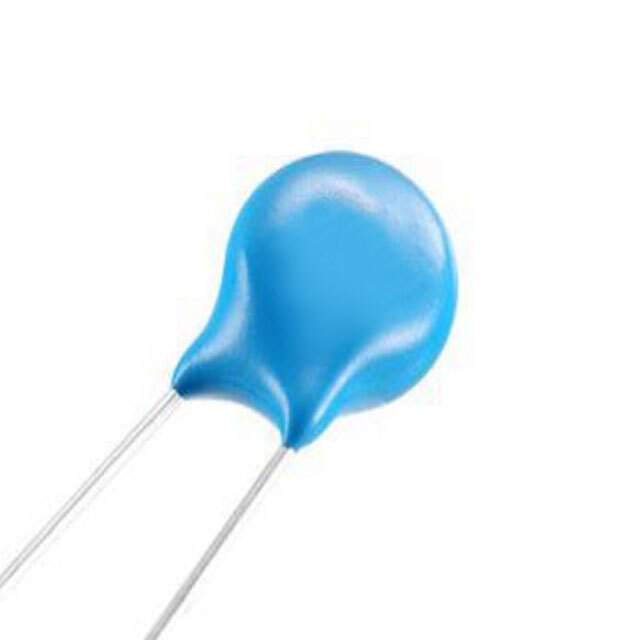

511KD07 Real Image
Same model may have multiple batches, images only for reference.

511KD07

Part No 511KD07
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 510 V 1.75 kA Varistor 1 Circuit Through Hole Disc 7mm
Datasheet
511KD07 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Manufacturer Yageo
Packaging Bulk
Maximum AC Volts 320 V
Maximum DC Volts 415 V
Varistor Voltage (Min) 459 V
Varistor Voltage (Typ) 510 V
Varistor Voltage (Max) 561 V
Current - Surge 1.75 kA
Energy 45J
Number of Circuits 1
Capacitance @ Frequency 100 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C
Mounting Through Hole
Case / Package Disc 7mm
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Part Number 13-511KD07
Standard Package 1,000
Win Source Part Number 1334780-511KD07
Ultra Librarian 3D Model Ultra Librarian 511KD07 CAD Model

Description

The 1334780-511KD07 is a circuit protection device designed to protect electronic circuits from transient overvoltage.

  • Device Type: TVS - Varistors, MOVs
  • Capacitance: 100pF @ 1 kHz
  • Varistor Voltage Range: 459V to 561V
  • Surge Current: 1.75kA
  • Maximum AC Voltage: 320V
  • Maximum DC Voltage: 415V
  • Energy Rating: 45J
  • Operating Temperature Range: -40°C to 105°C
  • Package/Case: Disc 7mm
  • Compliance: ROHS3
