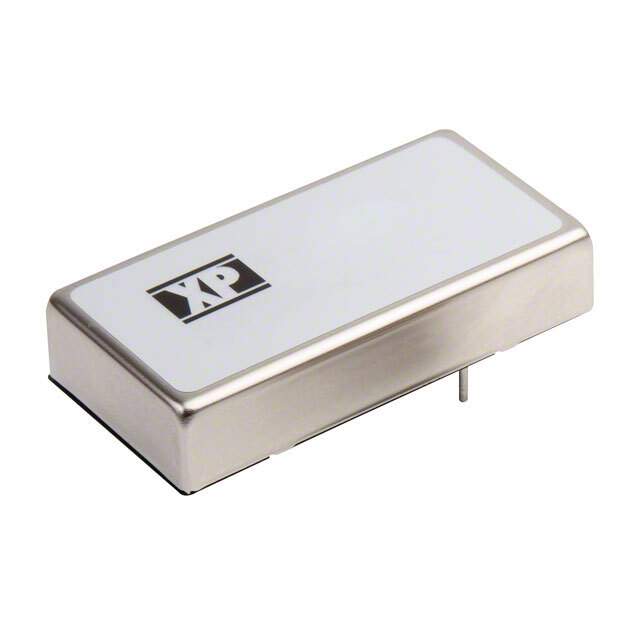

Same model may have multiple batches, images only for reference.

JTM2024D15

Name: JTM2024D15
Brand: XP Power
SKU: 1350808
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JTM2024D15
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 665mA, 665mA 9V - 36V Input
Datasheet	JTM2024D15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JTM (20W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	665mA, 665mA
Power (Watts)	20 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	89%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Control Features	Enable, Active High
Standard Number	62368-1
Base Product Number	JTM2024
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350808-JTM2024D15
Ultra Librarian 3D Model	Ultra Librarian JTM2024D15 CAD Model

Alternative Products

Description

The XP Power JTM2024D15 is a 20W isolated module type power supply that belongs to the JTM (20W) series.

Win Source Part Number: 1350808-JTM2024D15
Features: Remote On/Off, OCP, OVP, SCP, UVLO
Package/Case: 6-DIP Module
Size/Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Application: ITE (Commercial)
Standard Package: 10
Control Feature: Enable, Active High
Voltage Isolation: 1.6 kV
Number of Outputs: 2
Output Current (Max): 665mA, 665mA
Efficiency: 89%
