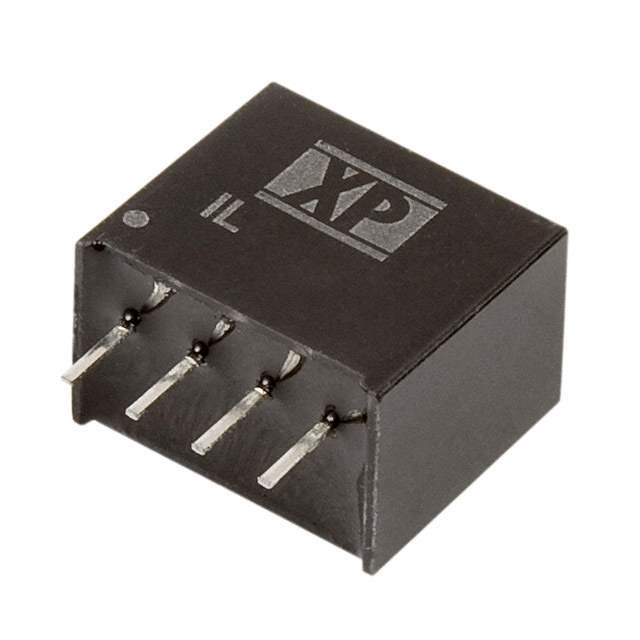

IL0505S Real Image
Same model may have multiple batches, images only for reference.

IL0505S

Part No IL0505S
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
Datasheet
IL0505S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series IL (2W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 77%
Mounting Type Through Hole
Package / Case 4-SIP Module
Dimension 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Base Product Number IL0505
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1470-1476-5
Standard Package 40
Win Source Part Number 1232392-IL0505S
Ultra Librarian 3D Model Ultra Librarian IL0505S CAD Model

Description

The XP Power IL0505S is an isolated module type DC DC converter that has a power of 2 W.

  • Type: DC DC Converter
  • Module Type: Isolated
  • Power: 2 W
  • Category: Power Supplies - Board Mount>DC DC Converters
  • Series: IL (2W)
  • Package: Tube
  • Standard Package: 40
  • Voltage Isolation: 1 kV
  • Current Output: 400mA
  • Voltage Input: 4.5V to 5.5V
  • Voltage Output: 5V
  • Efficiency: 77%
  • Mounting: Through Hole
  • Package/Case: 4-SIP Module
  • Operating Temperature: -40°C to 85°C
