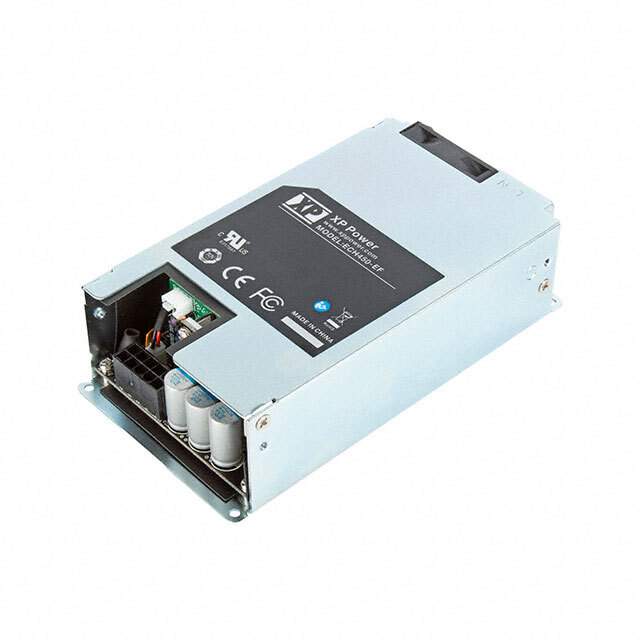

ECH450PS24-EF Real Image
Same model may have multiple batches, images only for reference.

ECH450PS24-EF

Part No ECH450PS24-EF
Manufacturer XP Power
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 250W  /  Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
Datasheet
ECH450PS24-EF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr XP Power
Series ECH450 (450W)
Package Bulk
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 10.4 A
Power (Watts) 250W (451W Forced Air)
Applications ITE (Commercial), Medical
Voltage - Isolation 4 kV
Efficiency 95%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Remote On/Off, Standby Output, Universal Input
Mounting Type Chassis Mount
Dimension 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm)
Approval Agency CB, CE, TUV, UL
Standard Number 62368-1
Minimum Load Required No
Base Product Number ECH450
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9530
Other Names 1470-ECH450PS24-EF
Standard Package 1
Win Source Part Number 965857-ECH450PS24-EF
Ultra Librarian 3D Model Ultra Librarian ECH450PS24-EF CAD Model

Description

The ECH450PS24-EF is a 450W enclosed power supply that features remote on/off, standby output, and universal input.

  • Suitable for: ITE (Commercial) and medical applications
  • Voltage Input: 90 ~ 264 VAC
  • Voltage Isolation: 4 kV
  • Number of Outputs: 1
  • Voltage Output 1: 24V
  • Efficiency: 95%
  • Minimum Load Required: Not necessary
  • Mounting Type: Chassis mount
  • Temperature Range for Operating: -20°C ~ 70°C (With Derating)
  • Dimension: 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm)
  • Approval Agency: CB, CE, TUV, and UL
  • Standard Number: 62368-1
