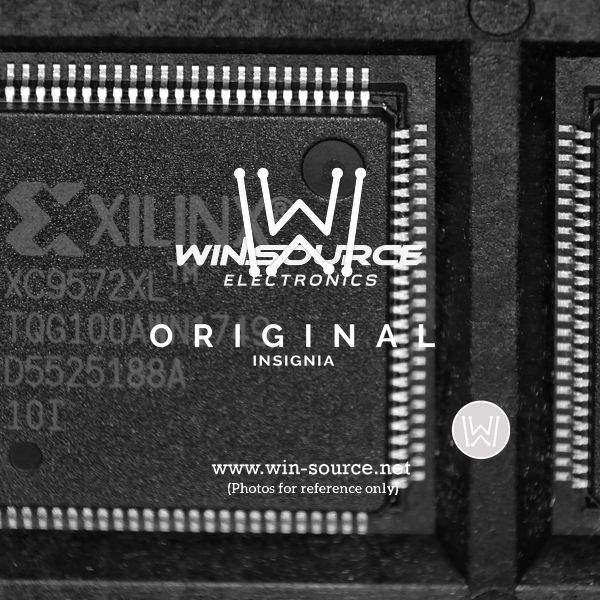

The XC9572XL is a high-performance Complex Programmable Logic Device (CPLD) from Xilinx Inc. It is designed for applications requiring fast logic implementation and flexible programmability.

Applications

• Address Decoding
• Glue Logic
• State Machine Implementation
• Peripheral Control
• Interface Bridging

Features

• 72 Macrocells
• 1600 Usable Gates
• Fast Pin-to-Pin Delay (5ns)
• In-System Programmable (ISP)
• Advanced Architecture for High Performance

Benefits

• Enables high-speed logic implementation due to its fast pin-to-pin delay, improving system performance.
• Provides flexible design changes and updates with in-system programmability, reducing development time.
• Reduces board space and component count compared to discrete logic solutions.
• Offers a cost-effective solution for implementing complex logic functions.

Additional Details

The XC9572XL operates on a 3.3V power supply. It is available in various package options, including PLCC, TQFP, and VQFP. The device supports JTAG boundary scan testing for easy debugging and testing. It is a popular choice for a wide range of applications due to its combination of performance, flexibility, and ease of use.
