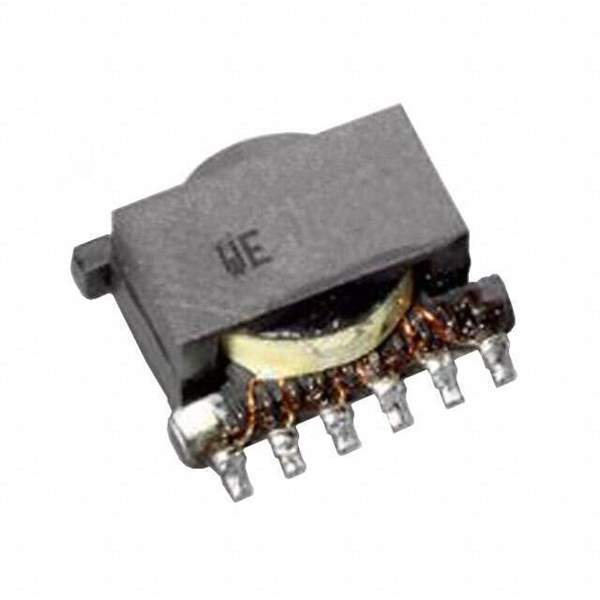

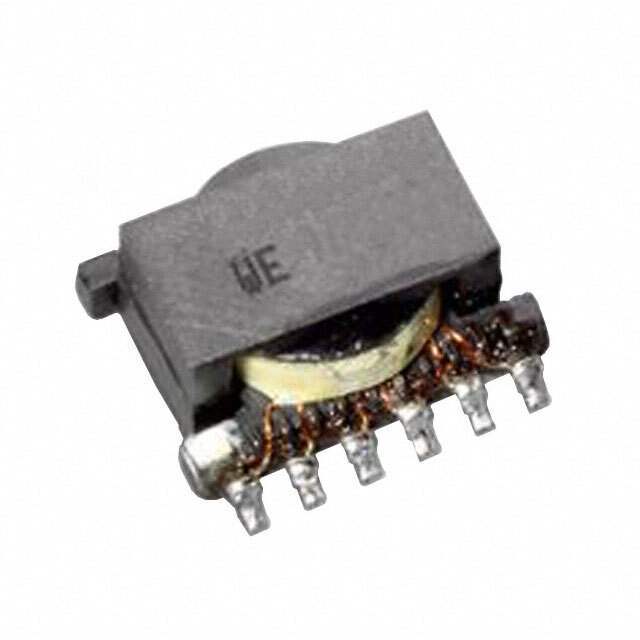

749196111Würth Elektronik
Same model may have multiple batches, images only for reference.

749196111

Part No 749196111
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description WE-FLEX FLEXIBLE TRANSFORMER FOR
Datasheet
749196111 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207957-749196111
Manufacturer Würth Elektronik
Category Transformers -Switching Converter, SMPS Transformers
Series WE-FLEX
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type Configurable (For DC/DC)
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.508" L x 0.362" W (12.90mm x 9.20mm)
Height - Seated (Max) 0.244" (6.20mm)
Ultra Librarian 3D Model Ultra Librarian 749196111 CAD Model

Description

Flexible For Configurable (For DC/DC) SMPS Transformer 500VDC Isolation Surface Mount
