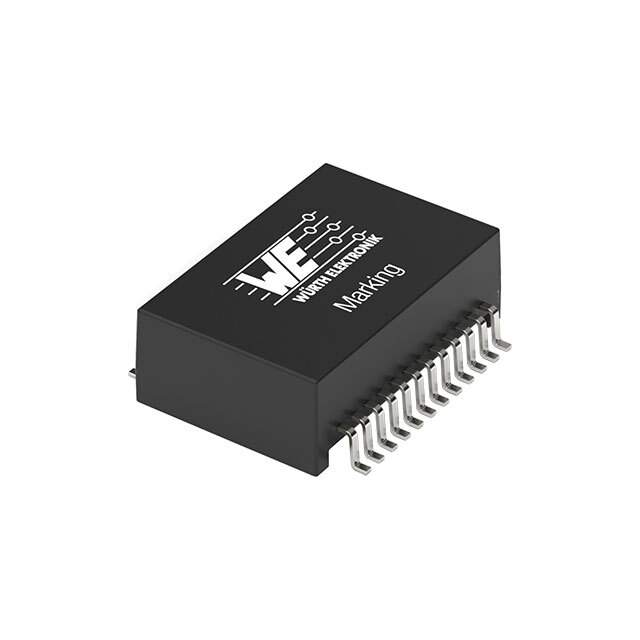

7490220115 Real Image1 7490220115 Real Image2
Same model may have multiple batches, images only for reference.
7490220115 Real Image1 7490220115 Real Image2
7490220115 Real Image1 7490220115 Real Image2
Same model may have multiple batches, images only for reference.

7490220115

Part No 7490220115
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description XFRMR LAN 1CT:1CT 350UH / 350µH LAN 1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
7490220115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Wurth Electronics Inc
Series WE-LAN
Package Tape & Reel
Transformer Type LAN 1000 Base-T
Inductance 350µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.720" L x 0.480" W (18.30mm x 12.20mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating -40°C ~ 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 400 pcs
Win Source Part Number 1381146-7490220115
Ultra Librarian 3D Model Ultra Librarian 7490220115 CAD Model

Description

The WE-LAN Pulse Transformer is a high-quality electronic component designed for use in LAN 1000 Base-T applications.

  • Size: 0.720" L x 0.480" W (18.30mm x 12.20mm)
  • Mounting Type: Surface Mount
  • Inductance: 350µH
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Wurth Electronics Inc
  • Package: Tape & Reel
  • Standard Package: 400 pcs
  • REACH: Unaffected
  • ECCN: EAR99
  • Moisture Sensitivity Level: 1 (Unlimited)
