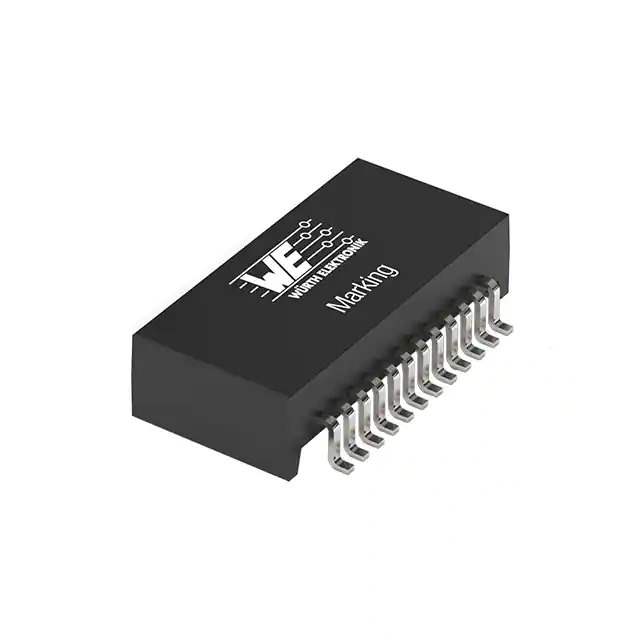

749020023A Real Image
Same model may have multiple batches, images only for reference.

749020023A

Part No 749020023A
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description XFRMR LAN 1000 BASE-T 1:1 350UH
Datasheet
749020023A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Wurth Electronics Inc
Series WE-LAN
Package Tape & Reel
Product Status Active
Transformer Type LAN 1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.594" L x 0.280" W (15.10mm x 7.10mm)
Height - Seated (Max) 0.167" (4.25mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 848453-749020023A
Ultra Librarian 3D Model Ultra Librarian 749020023A CAD Model

Description

The WE-LAN series from Wurth Electronics Inc offers a pulse transformer designed for LAN 1000 Base-T applications.

  • Series: WE-LAN
  • Application: LAN 1000 Base-T
  • Size: 0.594" L x 0.280" W (15.10mm x 7.10mm)
  • Maximum Seated Height: 0.167" (4.25mm)
  • Inductance: 350μH
  • Mounting: surface mountable
  • Temperature Range: -40°C to 85°C
  • Standard Package: 800 pcs
  • Status: active
