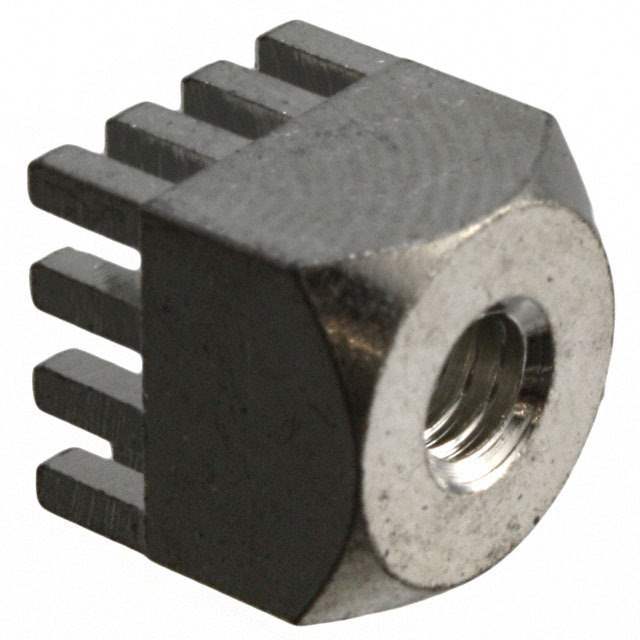

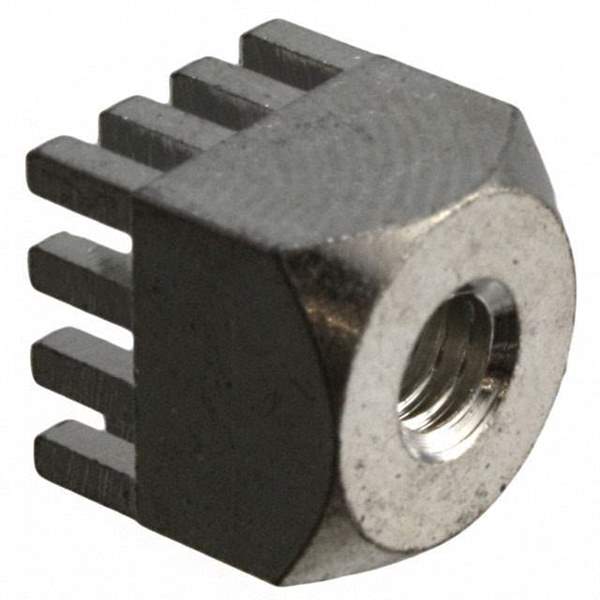

7461086 Würth Elektronik
Same model may have multiple batches, images only for reference.

7461086

Part No 7461086
Manufacturer Wurth Electronics Inc
Catalog Terminals
Description TERM REDCUBE M4 12PIN PCB
Datasheet
7461086 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202502-7461086
Manufacturer Würth Elektronik
Category Connectors, Interconnects -Terminals Screw Connectors
Series REDCUBE WP-BUCF
Package Bulk
Product Status Active
Terminal Type Screw Terminal, Power Tap
Termination Press-Fit
Current Rating (Amps) 175 A
Number of Pins 12
Ultra Librarian 3D Model Ultra Librarian 7461086 CAD Model

Description

The REDCUBE WP-BUCF series from Würth Elektronik is a range of screw connectors designed for power applications. The 1202502 model features press-fit termination and a screw terminal power tap.

  • Termination: Press-Fit
  • Features: Screw Terminal Power Tap
  • Number of Pins: 12
  • Screw Size: M4
  • Current Rating: 175A
  • Package: Bulk
  • Product Status: Active
