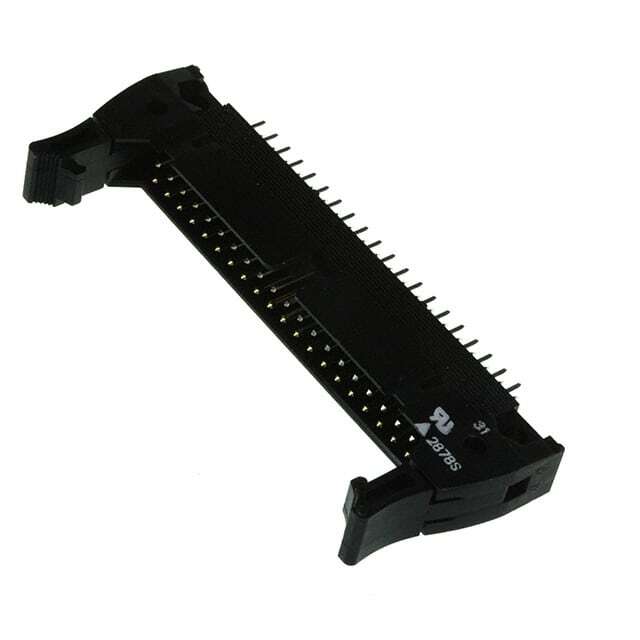

XG4A-4031 Omron
Same model may have multiple batches, images only for reference.

XG4A-4031

Part No XG4A-4031
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER VERT 40POS 2.54MM  /  Connector Header Through Hole 40 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.657" (16.70mm)
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Mated Stacking Heights 23.5mm
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XG4A4031BYOMZ,OR892,XG4A-4031 BY OMZ,XG4A4031,XG4A4031-ND
Standard Package 40
Win Source Part Number 1217685-XG4A-4031
Ultra Librarian 3D Model Ultra Librarian XG4A-4031 CAD Model

Description

The Omron XG4A-4031 is a 40-position, board-to-cable/wire connector with a pitch of 0.100" (2.54mm).

  • Voltage Rating: The connector has a voltage rating of 300V
  • Current Rating: and a current rating of 3A.
  • Contact Plating: The contact plating is gold
  • Contact Material: and the contact material is brass with nickel plating.
  • Insulation Material: The insulation material is made of polybutylene terephthalate (PBT), glass filled.
  • RoHS Compliance: The connector is RoHS compliant
  • Temperature Range: and has a temperature range of -55°C to 105°C.
  • Description: The Omron XG4A-4031 is a reliable and durable connector that is suitable for use in a wide range of applications.
