Products specifications

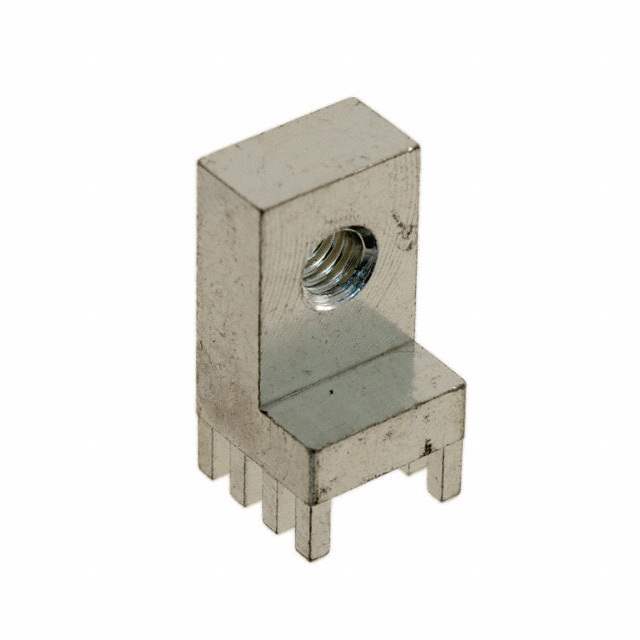

Win Source Part Number WS1204557-7461063
Manufacturer Würth Elektronik
Category Connectors, Interconnects- Terminals -Screw Connectors
Series REDCUBE WP-RATR
Package Bulk
Product Status Active
Terminal Type Screw Terminal, Power Tap
Screw Size M4
Termination Press-Fit
Current Rating (Amps) 160 A
Number of Pins 8
Ultra Librarian 3D Model Ultra Librarian 7461063 CAD Model

Description

•This electromechanical component was designed and manufactured for use in general electronic equipment.• Würth Elektronik must be asked for written approval (following the PPAP procedure) before incorporating the components into any equipment in fields such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network, etc. where higher safety and reliability are especially required and/or if there is the possibility of direct damage or human injury. • Electromechanical components that will be used in safety-critical or high-reliability applications, should be pre-evaluated by the customer. • The component is designed and manufactured to be used within the datasheet specified values. If the usage and operation conditions specified in the datasheet are not met, the component may be damaged or dissolved. • Do not drop or impact the components, the component may be damaged. • The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the authority of the customer. • Würth Elektronik products are qualified according to international standards. Würth Elektronik does not warrant any customer qualified product characteristics beyond Würth Elektroniks’ specifications, for its validity and sustainability over time.
