Same model may have multiple batches, images only for reference.

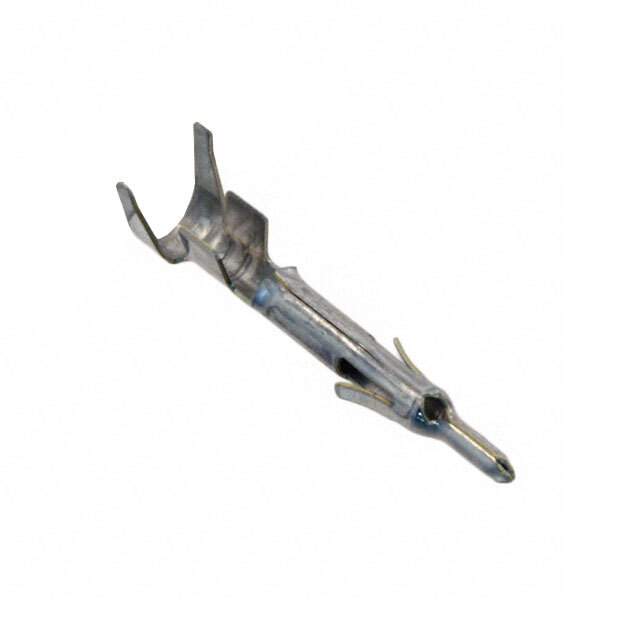

170360-1 Real Image
Same model may have multiple batches, images only for reference.

170360-1

Part No 170360-1
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN PIN 18-22AWG TIN CRIMP / Pin Contact Tin Crimp 18-22 AWG Stamped
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Tape & Reel (TR),Cut Tape (CT)
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Material Brass
Contact Finish Tin
Base Product Number 170360
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2266-170360-1TR,170360-1-ND,-DUL-PIN-22-18AW-UNIV-MNL-CSI,1703601,-DUL-PIN-22-18AW-UNIV-MNL-SI-ND,-DUL-PIN-22-18AW-UNIV-MNL-SI,A97686CT,-170360-1-SI,-DUL-PIN-22-18AW-UNIV-MNL-LSI,A97686TR,-DUL-PIN-22-18AW-UNIV-MNL-CSI-ND,-170360-1-CSI
Standard Package 4,000
Win Source Part Number 1014784-170360-1
Ultra Librarian 3D Model Ultra Librarian 170360-1 CAD Model

Description

The TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK 2266-170360-1TR is a pin contact designed for crimp termination.

  • Wire Gauge Range: 18-22 AWG
  • Package: Tape & Reel (TR) or Cut Tape (CT)
  • Category: Connectors, Interconnects
  • Standard Package: 4000
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8536.90.4000
  • Manufacturer: TE Connectivity AMP Connectors
