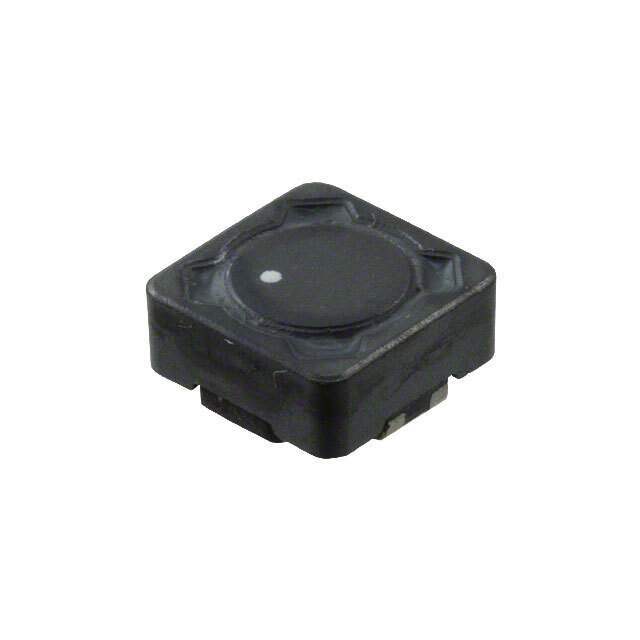

744878004 Würth Elektronik
Same model may have multiple batches, images only for reference.

744878004

Part No 744878004
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 4.7UH SMD
Datasheet
744878004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206834-744878004
Manufacturer Würth Elektronik
Category Inductors, Coils, Chokes-Arrays, Signal Transformers
Series WE-DD
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Number of Coils 2
Inductance - Connected In Parallel 4.7 µH
Inductance - Connected In Series 18.8 µH
Current Rating - Parallel 1.3 A
Current Rating - Series 650 mA
Ultra Librarian 3D Model Ultra Librarian 744878004 CAD Model

Description

Shielded 2 Coil Inductor Array 18.8 µH Inductance - Connected in Series 4.7 µH Inductance - Connected in Parallel 75mOhm Max DC Resistance (DCR) - Parallel 1.3 A Nonstandard
