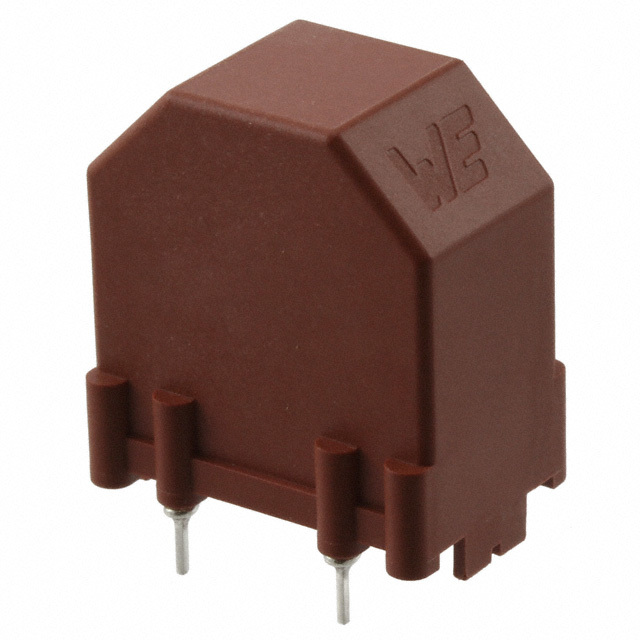

7448640406 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7448640406

Part No 7448640406
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 820UH 2A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 820 µH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 70mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.835" L x 0.654" W (21.20mm x 16.60mm)
Height (Max) 0.886" (22.50mm)
Case / Package Vertical, 4 PC Pin
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1507117-7448640406
Ultra Librarian 3D Model Ultra Librarian 7448640406 CAD Model
