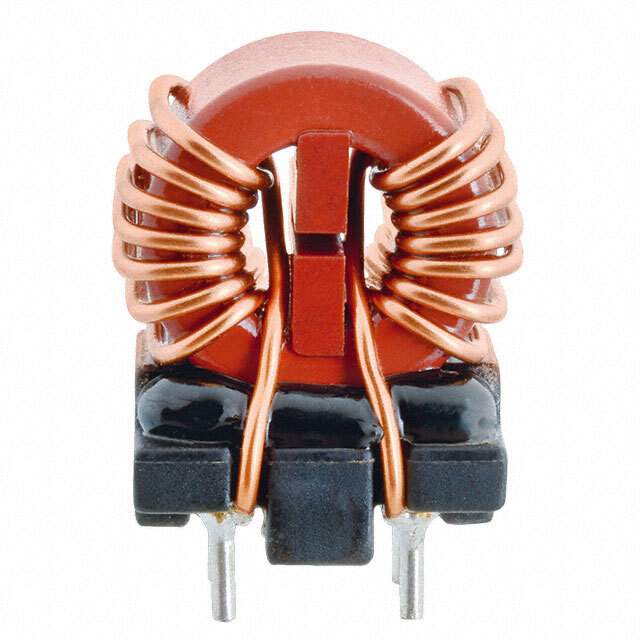

7448251201 Real Image
Same model may have multiple batches, images only for reference.

7448251201

Part No 7448251201
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1MH 12A 2LN TH / 1 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 12A DCR 9mOhm
Datasheet
7448251201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Würth Elektronik
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 12A
DC Resistance (DCR) (Max) 9mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Through Hole
Size / Dimension 1.181" L x 0.866" W (30.00mm x 22.00mm)
Height (Max) 1.378" (35.00mm)
Case / Package Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-1454
Standard Package 20
Win Source Part Number 1329957-7448251201
Ultra Librarian 3D Model Ultra Librarian 7448251201 CAD Model

Description

The Würth Elektronik 1329957-7448251201 is a power line common mode choke that is designed for use in filters. It has a voltage rating of 250V AC and is rated for a maximum current of 12A.

  • Mounting Style: through-hole
  • Case/Package: vertical, 4 PC pin
  • Inductance: 1 mH @ 100 kHz frequency
  • Maximum DC Resistance (DCR): 9mOhm
  • Operating Temperature Range: -40°C to 125°C
