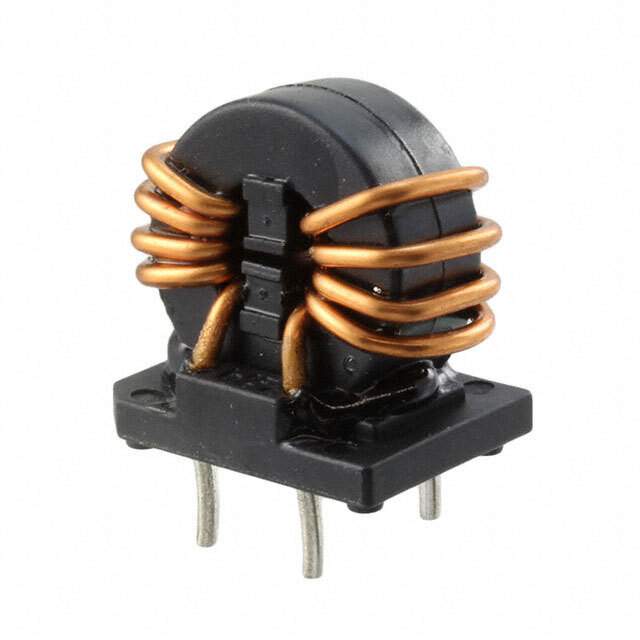

7448031501 Real Image
Same model may have multiple batches, images only for reference.

7448031501

Part No 7448031501
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 1MH 15A 2LN TH / WE-CMBNC Common Mode Power Line Choke Nanocrystalline
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Inductance at Frequency 1mH at 10kHz
Current Rating (Maximum) 15A
DC Resistance (DCR) (Maximum) 3.3mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Through Hole
Dimension 0.906" L x 0.669" W (23.00mm x 17.00mm)
Height (Maximum) 0.984" (25.00mm)
Manufacturer Package Vertical, 4 PC Pin
Manufacturer Pack Quantity 90
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812114-7448031501
Ultra Librarian 3D Model Ultra Librarian 7448031501 CAD Model

Description

The Würth Elektronik Power Line Filter is a through-hole component designed for use in electronic devices.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 15A
  • Temperature Range: -40°C to 125°C
  • Package: Vertical, 4 PC pin
