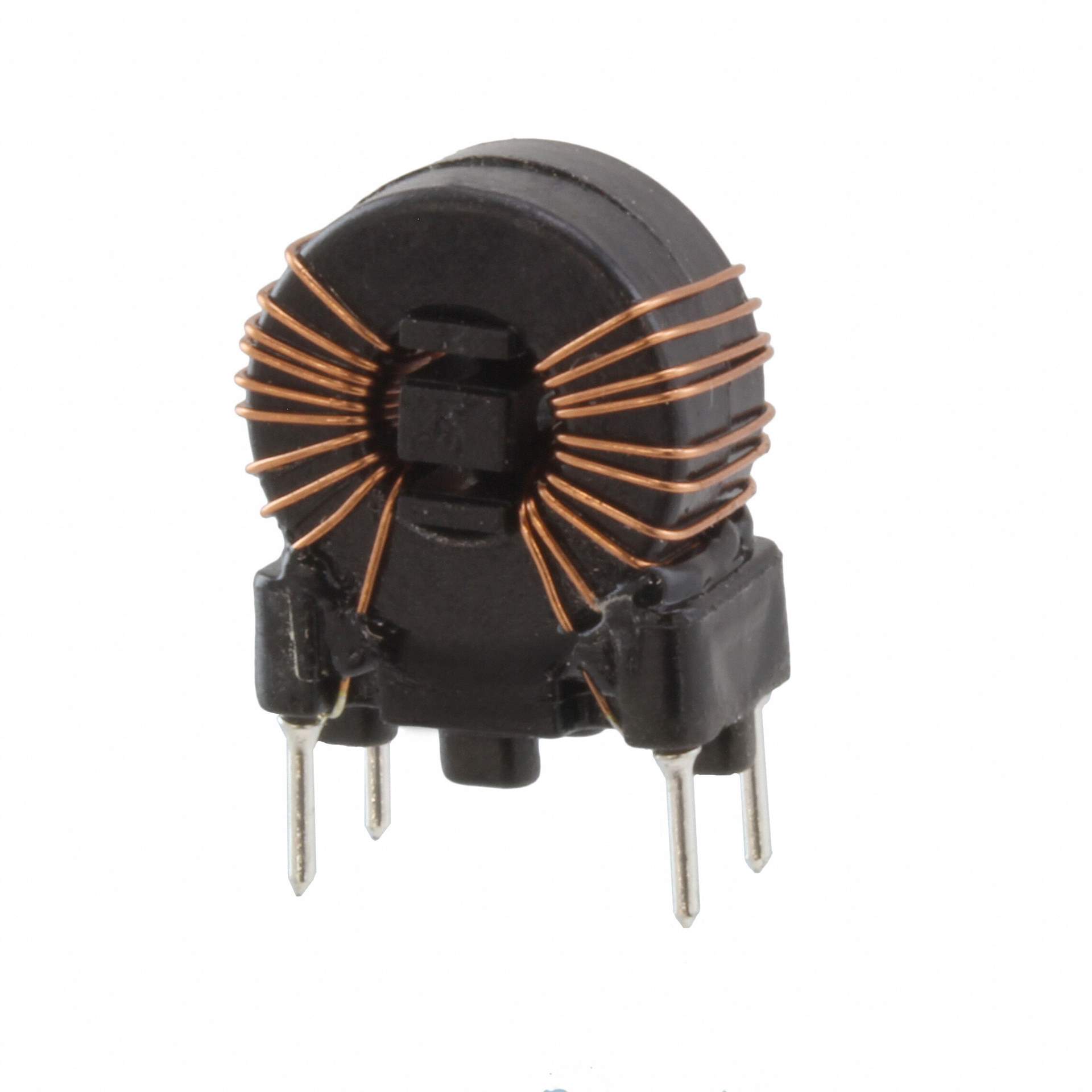

7448012002 Real Image
Same model may have multiple batches, images only for reference.

7448012002

Part No 7448012002
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1.6MH 2A 2LN TH / 1.6 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 90mOhm
Datasheet
7448012002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Würth Elektronik
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.6 mH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 90mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Through Hole
Size / Dimension 0.551" L x 0.295" W (14.00mm x 7.50mm)
Height (Max) 0.630" (16.00mm)
Case / Package Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-5577
Standard Package 300
Win Source Part Number 1328222-7448012002
Ultra Librarian 3D Model Ultra Librarian 7448012002 CAD Model

Description

The Würth Elektronik 1328222-7448012002 is a common mode choke filter for power lines.

  • Voltage Rating: 250V
  • Current Rating: 2A
  • Inductance: 1.6 mH @ 10 kHz
  • DC Resistance: 90mOhm
  • Standard Package: 300
  • Mounting: Through-hole
  • Size: 0.551" L x 0.295" W (14.00mm x 7.50mm)
  • Height: 0.630" (16.00mm)
  • Package: Vertical, 4 PC pin
  • Number of Lines: 2
  • Operating Temperature Range: -40°C to 125°C
  • Compliance: ROHS3
  • REACH: Unaffected
