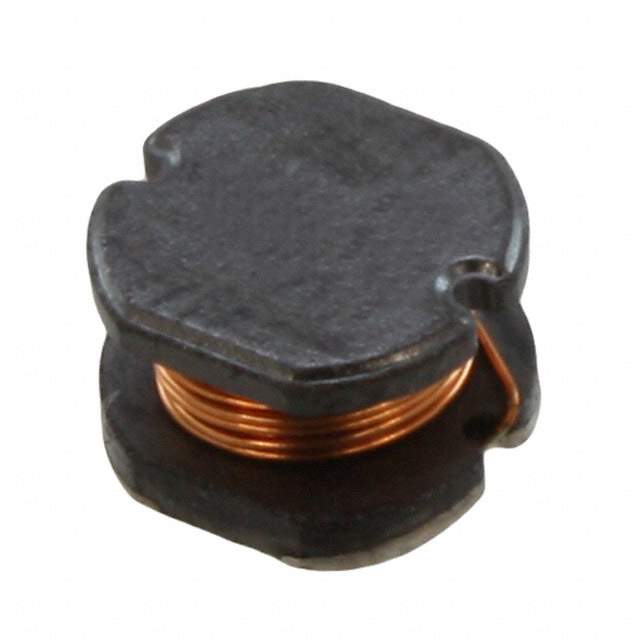

744775215 Real Image1 744775215 Real Image2
Same model may have multiple batches, images only for reference.
744775215 Real Image1 744775215 Real Image2
744775215 Real Image1 744775215 Real Image2
Same model may have multiple batches, images only for reference.

744775215

Part No 744775215
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 150UH 600MA 640MOHM SM / 150 µH Unshielded Drum Core, Wirewound Inductor 600 mA 640mOhm Max Nonstandard
Datasheet
744775215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD2
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±10%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 710mA
Shielding Unshielded
DC Resistance (DCR) 640mOhm Max
Q @ Freq -
Frequency - Self Resonant 6.2MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 500 pcs
Win Source Part Number 1381117-744775215
Ultra Librarian 3D Model Ultra Librarian 744775215 CAD Model

Description

The WE-PD2 series is a set of fixed inductors designed with a drum core and wirewound construction. They are manufactured by Wurth Electronics Inc.

  • Size: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Height: 0.217" (5.50mm)
  • Mounting Type: Surface Mount
  • Inductance: 150µH
  • Tolerance: ±10%
  • DC Resistance: 640mOhm
  • Current Rating: 600mA
  • Packaging: Tape and Reel
  • Pieces Per Package: 500
  • Shielding: Unshielded
  • Operating Temperature: -40°C to 125°C
  • REACH Unaffected: Yes
  • Moisture Sensitivity Level: 1 (Unlimited)
