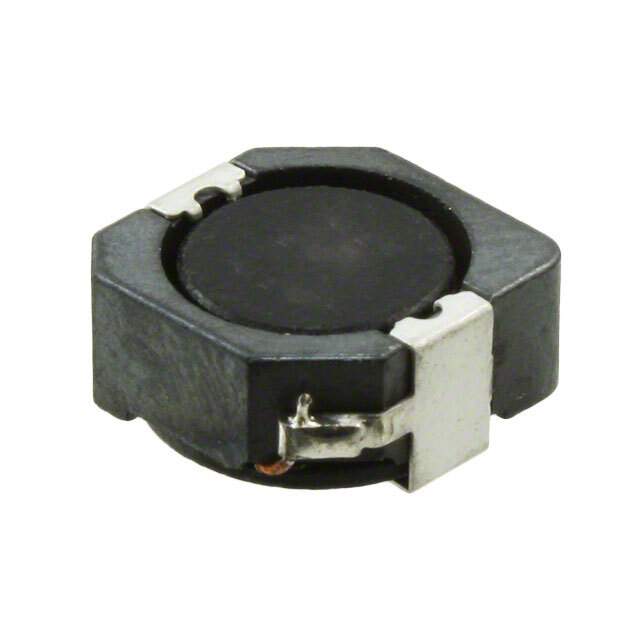

7447714331 Real Image1 7447714331 Real Image2
Same model may have multiple batches, images only for reference.
7447714331 Real Image1 7447714331 Real Image2
7447714331 Real Image1 7447714331 Real Image2
Same model may have multiple batches, images only for reference.

7447714331

Part No 7447714331
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 330UH 710MA 750MOHM SM / 330 µH Shielded Drum Core, Wirewound Inductor 710 mA 750mOhm Max Nonstandard
Datasheet
7447714331 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD Performance
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 µH
Tolerance ±20%
Current Rating (Amps) 710 mA
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 750mOhm Max
Q @ Freq -
Frequency - Self Resonant 3.15MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 500 pcs
Win Source Part Number 1381112-7447714331
Ultra Librarian 3D Model Ultra Librarian 7447714331 CAD Model

Description

The WE-PD Performance series inductor is a high-performance component designed for various electronic applications. It is manufactured by Wurth Electronics Inc.

  • Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Inductor Type: Drum Core, Wirewound
  • Inductance: 330 µH
  • Tolerance: ±20%
  • Shielding: Shielded
  • Maximum Seated Height: 0.197" (5.00mm)
  • Mounting Type: Surface Mount
  • Package / Case: Nonstandard
  • DC Resistance (DCR): 750mOhm
  • Current Rating: 710 mA
  • Operating Temperature: -40°C to 125°C
  • AEC-Q200: Yes
