Same model may have multiple batches, images only for reference.

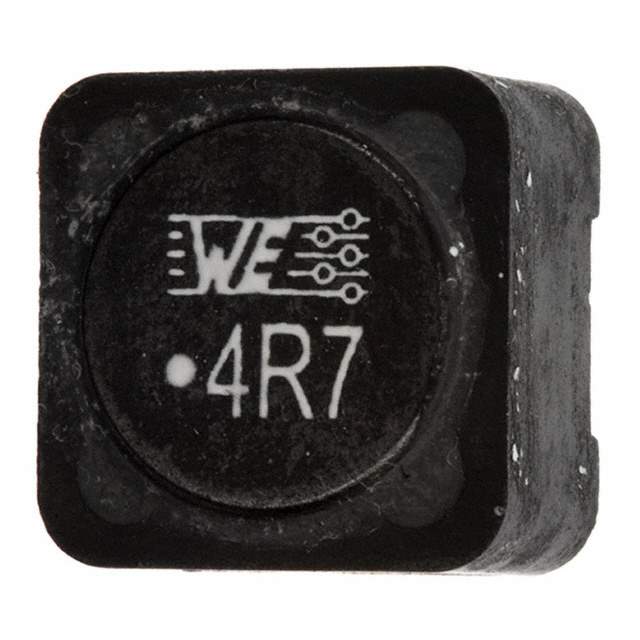

74477004 Real Image
Same model may have multiple batches, images only for reference.

74477004

Part No 74477004
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description Power Choke Shielded Wirewound 4.7uH -20% to 40% 1KHz Ferrite 8.5A 16mOhm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Nonstandard
Composition Wirewound
Core Material Ferrite
Current Rating 8.5 A
DC Resistance (DCR) 16 mΩ
Depth 12 mm
Height 8 mm
Height - Seated (Max) 8.001 mm
Inductance 4.7 µH
Inductance Tolerance 40 %
Lead Free Lead Free
Length 12 mm
Max DC Current 8.5 A
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Pins 2
Packaging Cut Tape (CT)
REACH SVHC Unknown
Resistance 16 mΩ
RMS Current (Irms) 8.5 A
RoHS Compliant
Saturation Current 9.3 A
Self Resonant Frequency 31.2 MHz
Series Resistance 16 mΩ
Shielding Shielded
Termination SMD/SMT
Test Frequency 1 kHz
Tolerance 40 %
Weight 4.535924 g
Width 12 mm
Win Source Part Number 1197617-74477004
Categories Fixed Inductors
Manufacturer Wurth Electronics Inc
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 74477004 CAD Model

Description

The 74477004 is a fixed inductor manufactured by Wurth Electronics Inc.

  • Packaging: cut tape (CT)
  • Mounting Style: surface-mount device (SMD)
  • Shielding: yes
  • Inductance: 4.7 μH
  • Current Rating: 8.5 A
  • DC Resistance (DCR): 16 mΩ
  • Maximum DC Current: 8.5 A
  • Saturation Current: 9.3 A
  • Inductance Tolerance: 40%
  • Test Frequency: 1 kHz
  • Core Material: ferrite
  • Self-Resonant Frequency: 31.2 MHz
  • Lead-Free: yes
  • RoHS Compliant: yes
  • Suitable for: fixed inductors
