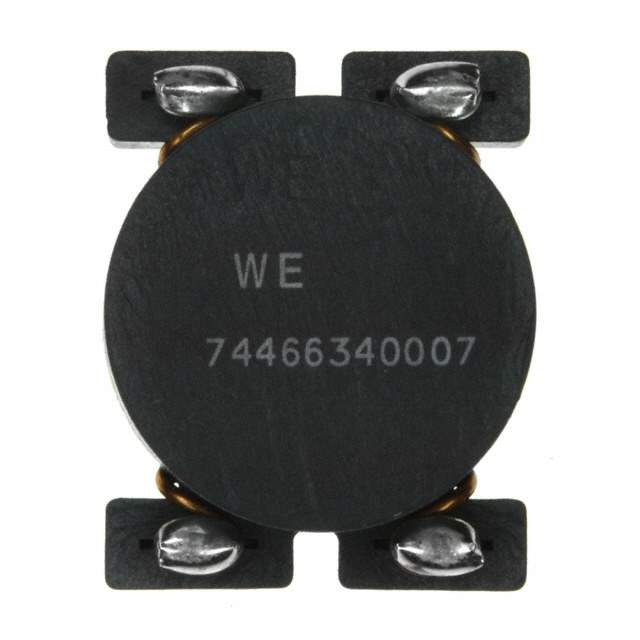

The WE-LF series is a common mode choke designed for power line filtering in electronic components. Manufactured by Wurth Electronics Inc, this choke is an active product.

• Voltage Rating: 250V AC
• Current Rating: 5.25A
• Size Dimension: 0.917" L x 0.728" W (23.30mm x 18.50mm)
• Height: 0.453" (11.50mm)
• Package: Horizontal, 4 PC pad
• Operating Temperature: -40°C to 125°C
• Inductance: 700µH @ 10kHz
• Maximum DC Resistance: 30mOhm
• Standard Package: 200 pcs
• Applications: Power line filters, common mode chokes, and signal line filtering in electronic circuits
