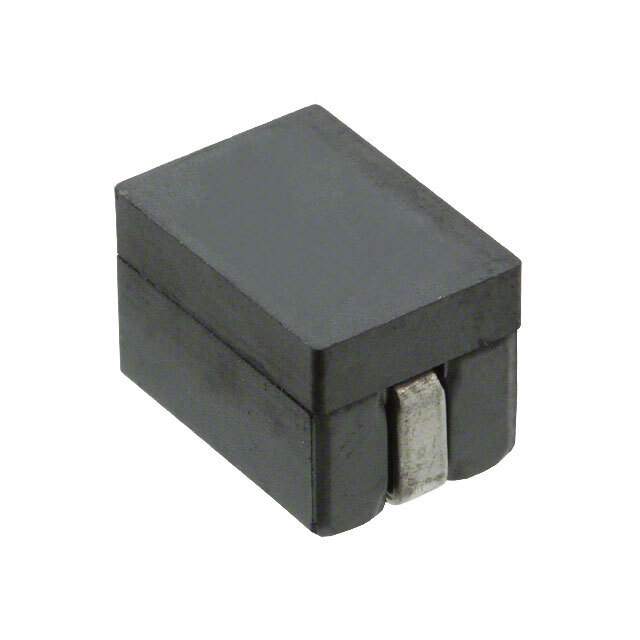

744308020 Real Image
Same model may have multiple batches, images only for reference.

744308020

Part No 744308020
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 200NH 25A 0.37MOHM SMD
Datasheet
744308020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCM
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 200 nH
Tolerance ±20%
Current Rating (Amps) 25 A
Current - Saturation (Isat) 48A
Shielding Shielded
DC Resistance (DCR) 0.37mOhm
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.398" L x 0.276" W (10.10mm x 7.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857325-744308020
Ultra Librarian 3D Model Ultra Librarian 744308020 CAD Model

Description

The WE-HCM series from Wurth Electronics Inc is a range of shielded drum core, wirewound fixed inductors designed for use in various electronic applications.

  • Size: 0.398" L x 0.276" W (10.10mm x 7.00mm)
  • Inductance: 200 nH
  • Height: 0.276" (7.00mm) (Maximum)
  • Mounting Type: Surface Mount
  • Tolerance: ±20%
  • DC Resistance (DCR): 0.37mOhm
  • Current Rating: 25 A
  • Operating Temperature: -40°C to 125°C
  • Core Material: Manganese zinc ferrite (MnZn)
  • Self-Resonant Frequency: 45MHz
  • Saturation Current: 48A
