744229 Real Image

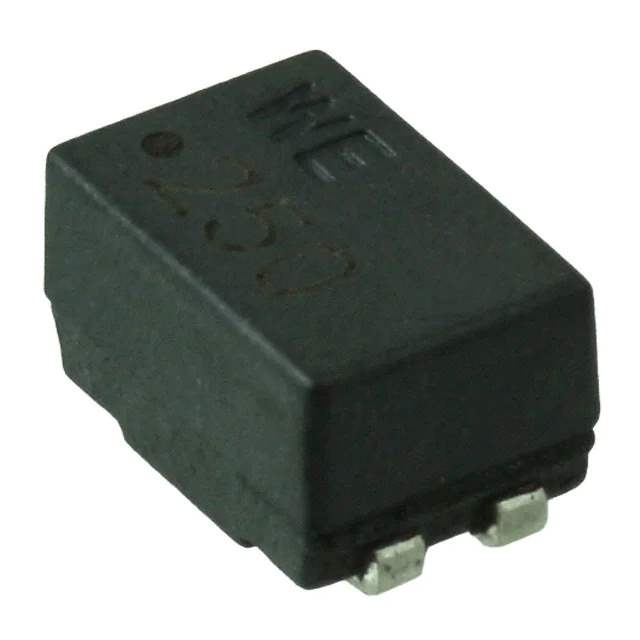

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 18.4 kOhms @ 700 kHz
Inductance @ Frequency 6.5 mH @ 10 kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 950mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.209" (5.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547230-744229
Ultra Librarian 3D Model Ultra Librarian 744229 CAD Model

Description

The WE-SL2 series is a category of common mode chokes designed by Wurth Electronics Inc.

  • Maximum Current Rating: 400mA
  • Voltage Rating: 80V DC
  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Height: 0.209" (5.30mm)
  • Mounting: Surface Mount
  • Impedance: 18.4 kOhms @ 700 kHz
  • DC Resistance (DCR): 950mOhm
  • Inductance: 6.5 mH @ 10 kHz
  • Package: Tape and Reel
  • Pieces per Package: 1,000
  • Operating Temperature Range: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Status: Active
