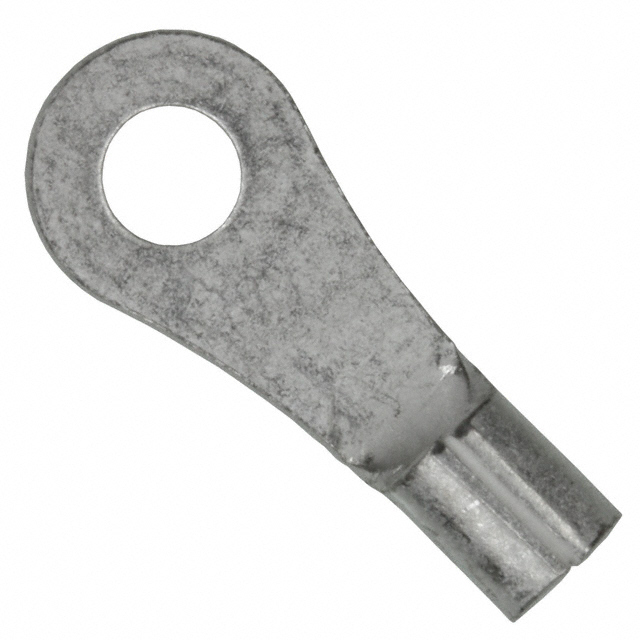

2-320571-4 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

2-320571-4

Part No 2-320571-4
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 20AWG #1/4 CRIMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Terminal Type Circular
Stud/Tab Size 1/4 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.469" (11.91mm)
Length - Overall 1.140" (28.96mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 20 AWG
Insulation Insulated
Features Insulation Restriction
Color Red, Red Stripe
Contact Material Copper
Contact Finish Tin
Package Bulk
Supply and Demand Status Limited
Win Source Part Number 1635291-2-320571-4
Ultra Librarian 3D Model Ultra Librarian 2-320571-4 CAD Model
