Same model may have multiple batches, images only for reference.

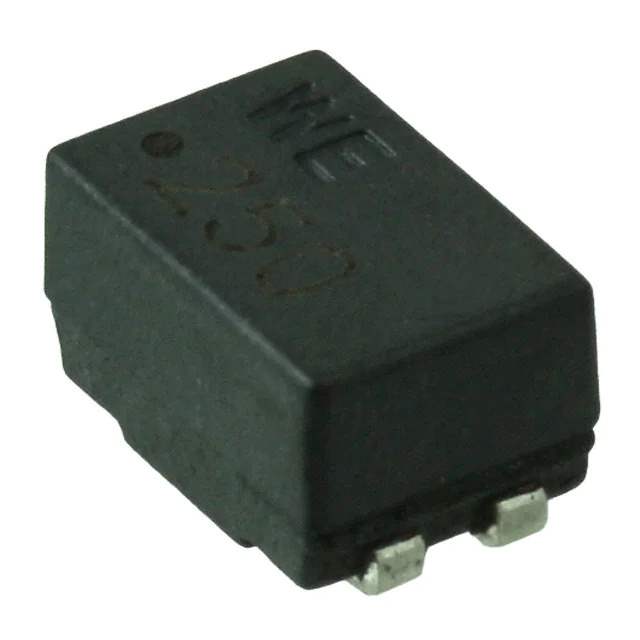

744225 Real Image
Same model may have multiple batches, images only for reference.

744225

Part No 744225
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 40UH 900MA 2LN 3.1K OHM SMD
Datasheet
744225 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 3.1 kOhms @ 40 MHz
Inductance @ Frequency 40 µH @ 1 kHz
Current Rating (Max) 900mA
DC Resistance (DCR) (Max) 250mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.209" (5.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547225-744225
Ultra Librarian 3D Model Ultra Librarian 744225 CAD Model

Description

The WE-SL2 series by Wurth Electronics Inc is a range of common mode chokes designed for signal line applications.

  • Maximum Current Rating: 900mA
  • Voltage Rating: 80V DC
  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Height: 0.209" (5.30mm)
  • Impedance: 3.1 kOhms @ 40 MHz
  • Inductance: 40 μH @ 1 kHz
  • DC Resistance (DCR): 250mOhm
  • Package: tape and reel
  • Standard Package: 1,000 pieces
  • Operating Temperature: -40°C to 125°C
