Products specifications

Categories RF/IF and RFID
Manufacturer Maxim Integrated
Packaging Reel
Frequency 800MHz ~ 1GHz
Gain 23.9dB
RF Type ISM
Supply Voltage (V) 2.7V ~ 5.5V
Supply Current 44mA
Test Frequency 915MHz
Manufacturer Package 16-SSOP
Supplier Device Package 16-PowerQSOP
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 702586-MAX2233EEE+T
Series MAX series
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MAX2233EEE+T CAD Model

Description

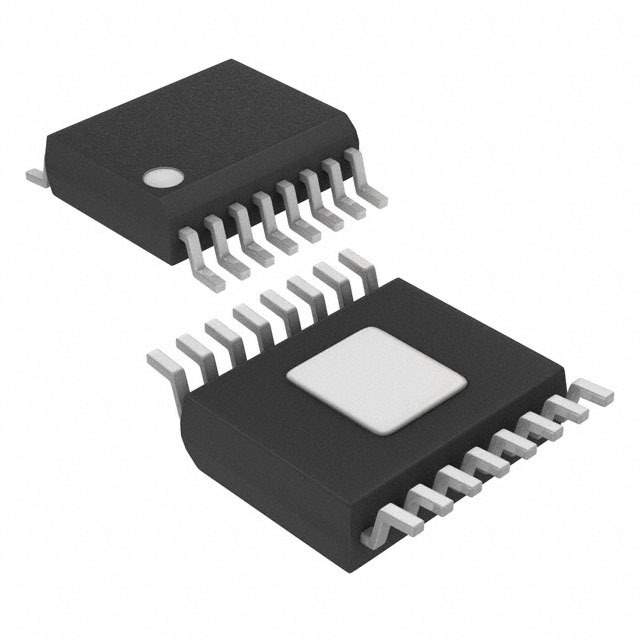

Maxim Integrated MAX2233EEE+T Power Amplifier

The MAX2233EEE+T from Maxim Integrated is a high-performance, low-voltage power amplifier designed for use in portable RF applications. This device is specifically tailored to meet the demands of battery-powered equipment by offering a combination of low power consumption and high efficiency, making it an ideal choice for extending battery life in communication devices.

Built with Maxim's advanced silicon technology, the MAX2233EEE+T operates in the 900MHz frequency range, making it suitable for GSM and CDMA cellular handsets, wireless local loop applications, and other RF systems. The amplifier's flexible design allows it to deliver a high output power of +35dBm while maintaining a low supply voltage of 2.7V to 5.5V, which is critical for portable devices where energy efficiency is paramount.

The MAX2233EEE+T is equipped with a power control feature that provides excellent linearity over a wide dynamic range. This ensures that the output power can be adjusted accurately to meet the specific requirements of various communication standards and to reduce power consumption when full output is not needed. Additionally, the device offers a high level of integration, which minimizes the need for external components and simplifies the overall design process for engineers.

Encased in a compact, 16-pin QSOP package, the MAX2233EEE+T is designed to occupy minimal board space, which is crucial for the increasingly compact designs of modern wireless devices. Its lead(Pb)-free construction and RoHS compliance make it an environmentally friendly choice, adhering to current international regulations on hazardous substances.

Overall, the Maxim Integrated MAX2233EEE+T power amplifier stands out for its ability to provide robust performance while meeting the size and power constraints of portable RF devices. Its combination of efficiency, power control, and compact form factor makes it a top choice for designers looking to create the next generation of wireless communication tools.
