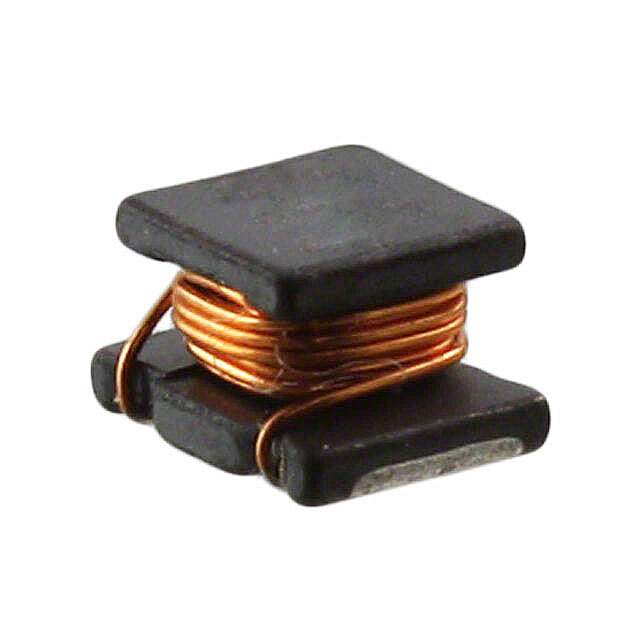

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 490mA
Current - Saturation 1.25A
Shielding Unshielded
DC Resistance (DCR) 280mOhm Max
Q at Freq 20 at 1MHz
Frequency - Self Resonant 31MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package 1210 (3225 Metric)
Supplier Device Package 1210
Parts Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.091" (2.30mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129863-744032004
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744032004 CAD Model

Description

The 1129863-744032004 is a wirewound inductor manufactured by Wurth Electronics Inc.

  • Application: designed for use in SMD applications
  • Inductance: 4.7μH with a tolerance of ±20%
  • Material: Ferrite material
  • DC Resistance (DCR): 280mOhm Max
  • Current Saturation: 1.25A
  • Frequency Self-Resonant: 31MHz
  • Package: 1210 (3225 Metric) package
  • Height: 0.091" (2.30mm)
  • Status: balanced
  • Manufacturer Pack Quantity: 1
  • Current: 490mA
  • MSL Level: 1 (Unlimited)
